AAC Conductor

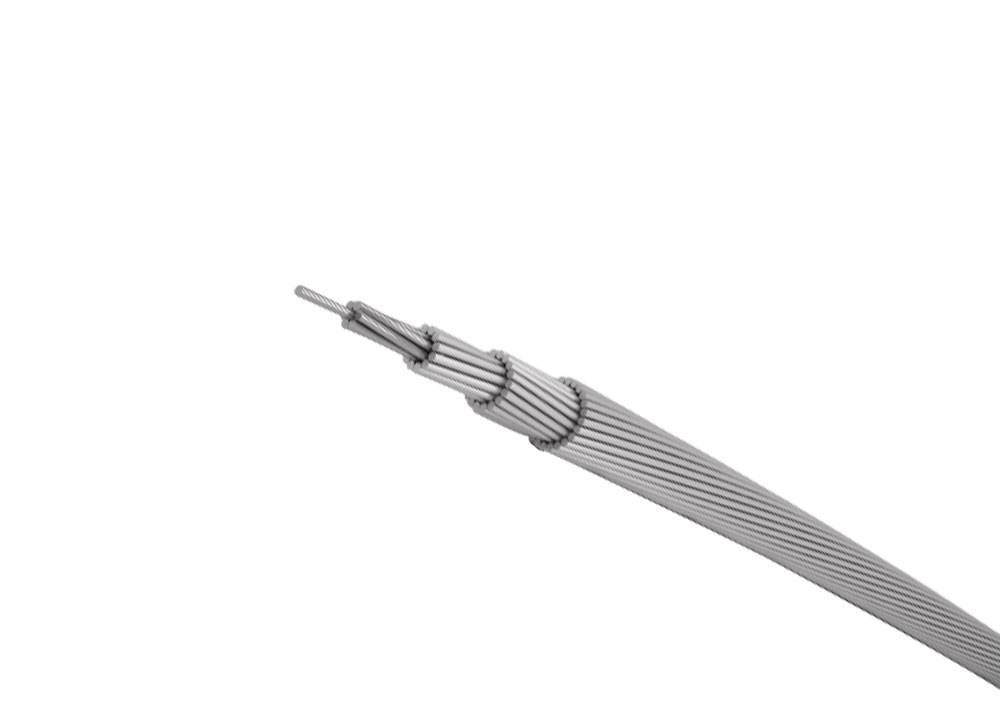

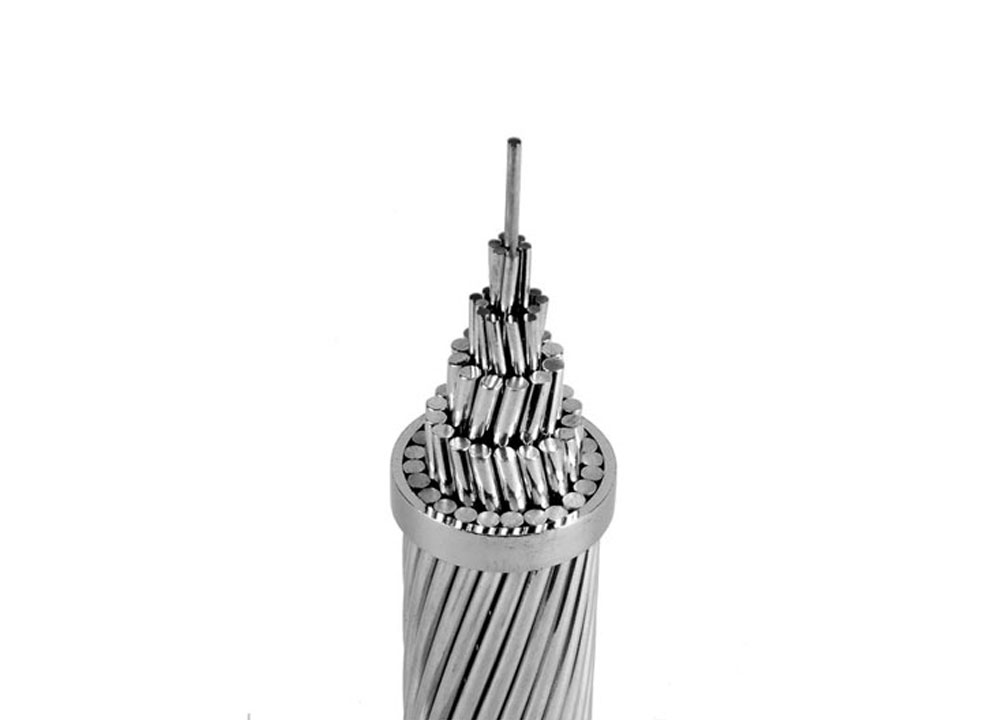

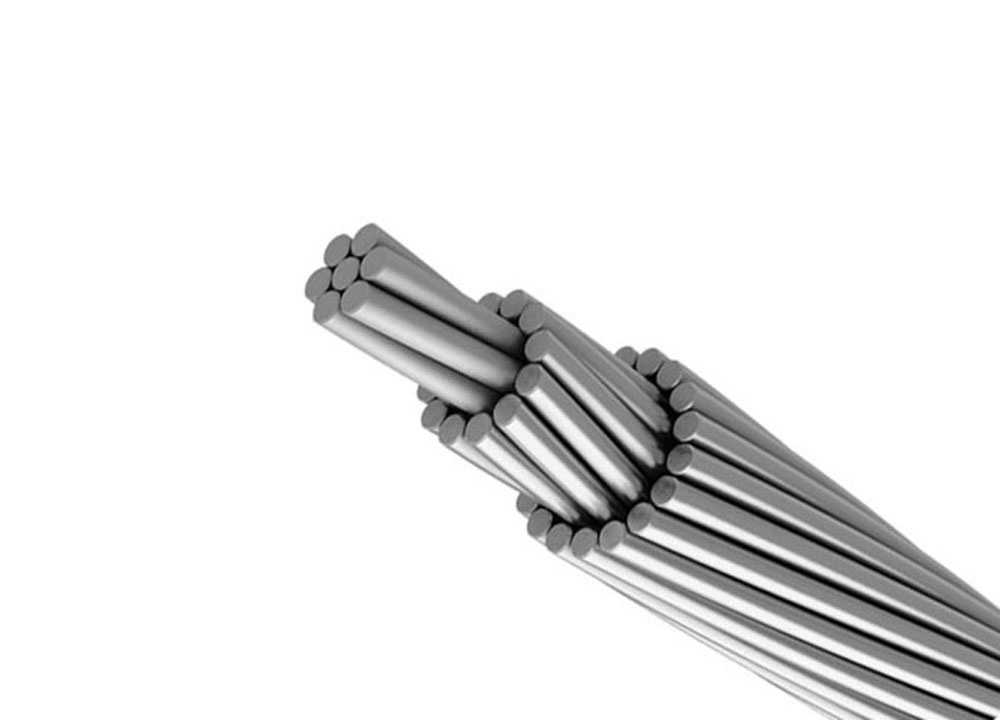

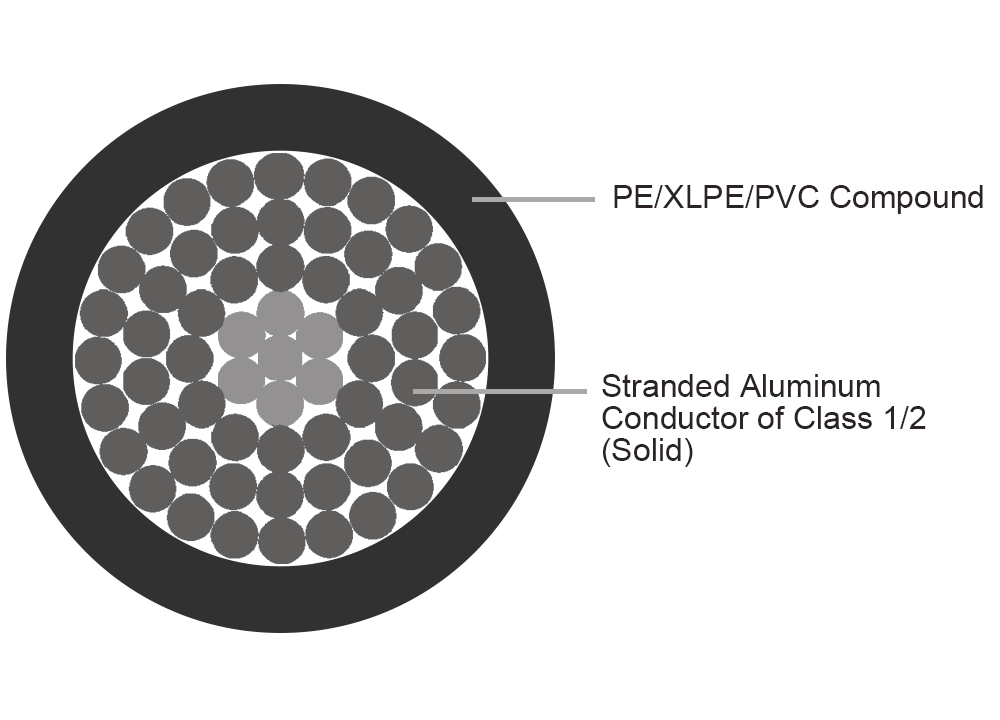

  • Conductor:

    Stranded Aluminum Conductor of Class 1/2 (Solid)

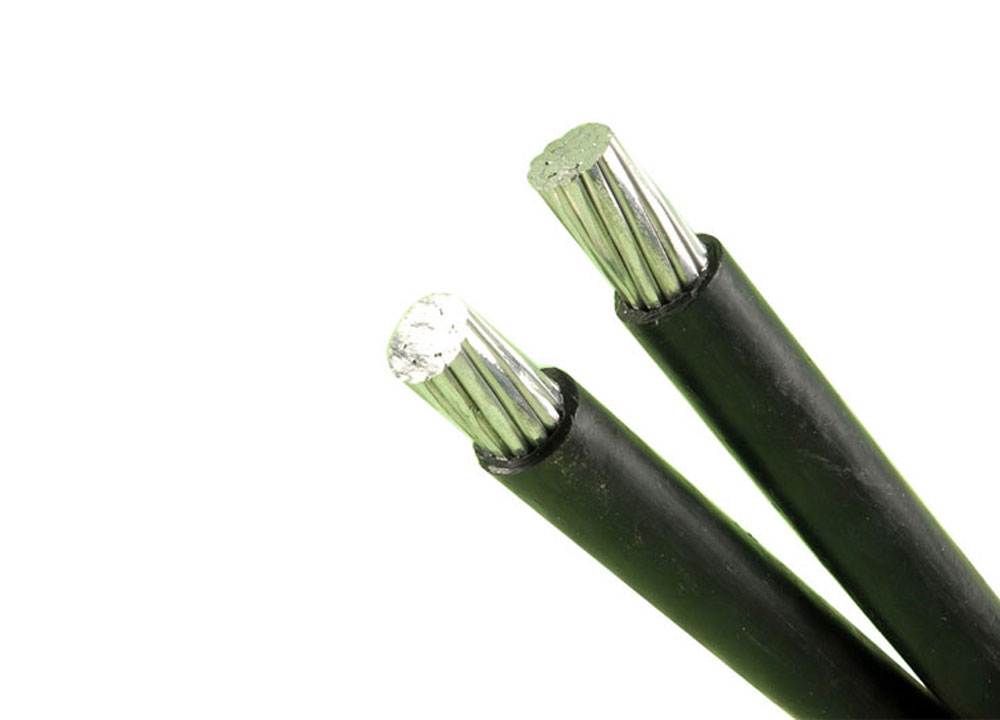

  • Insulation:

    PE/XLPE/PVC Compound

  • Standard:

    GB/T1179-2008

  • Insulation Color:

    Black

  • Nominal Voltage:

    600/1000V

  • Test Voltage:

    4000 V

  • Minimal Bending Radius:

    4D for D < 25 mm 6D for D > 25mm

Description AAC Conductor
Conductor: Stranded Aluminum Conductor of Class 1/2 (Solid)
Insulation: PE/XLPE/PVC Compound
Insulation Color Black
Nominal Voltage: 600/1000V
Test Voltage: 4000 V
Minimal Bending Radius: 4D for D < 25 mm   6D for D > 25mm
Standard GB/T12527-2008

Nominal Section Calculated
Cross Section
No./ Dia. of
Stranding Wire
Overall
Diameter
Weight Calculated
Breaking Load
Max. D.C. Resistance
at 20℃
mm² mm² mm mm kg/km kN Ω/km
10 10.02 7/1.35 4.1 27.4 1.95
16 16.08 7/1.71 5.1 44 3.04 1.8018
25 24.94 7/2.13 6.3 67 4.5 1.1808
35 34.36 7/2.50 7.5 94 6.01 0.8332
40 40.08 7/2.7 8.1 109.4 6.8
50 49.48 7/3.00 9 135 8.41 0.5786
63 63.18 7/3.39 10.2 172.3 10.39 0.4545
70 65.82 19/2.10 10.5 181 11.4 0.4371
95 93.27 19/2.50 12.5 256 15.22 0.3084
100 100.1 19/2.59 12.9 274.8 17 0.2877
120 117 19/2.80 14 322 20.61 0.2459
125 124.6 19/2.89 14.5 343.6 21.25 0.2302
150 147.1 37/2.25 15.2 406 24.43 0.196
160 159.6 19/3.27 16.4 439.8 26.4 0.1978
185 181.6 37/2.50 17.5 501 30.16 0.1587
240 242.54 61/2.25 20.2 670 38.2 0.1191
300 299.43 61/2.50 22.5 827 49.1 0.0965
400 400.14 61/2.89 26 1105 64 0.0722
500 499.83 61/3.23 29.1 1381 80 0.0578
630 626.2 91/2.96 32.6 1733 100.8 0.04625
800 802.1 91/3.35 36.8 2219 128 0.0361
1000 999.71 91/3.74 41.1 2766 160 0.029
AAC cable are widely used in power transmission lines with various voltage levels, since they have such good characteristics as simple structure, convenient installation and
maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical features exist.
