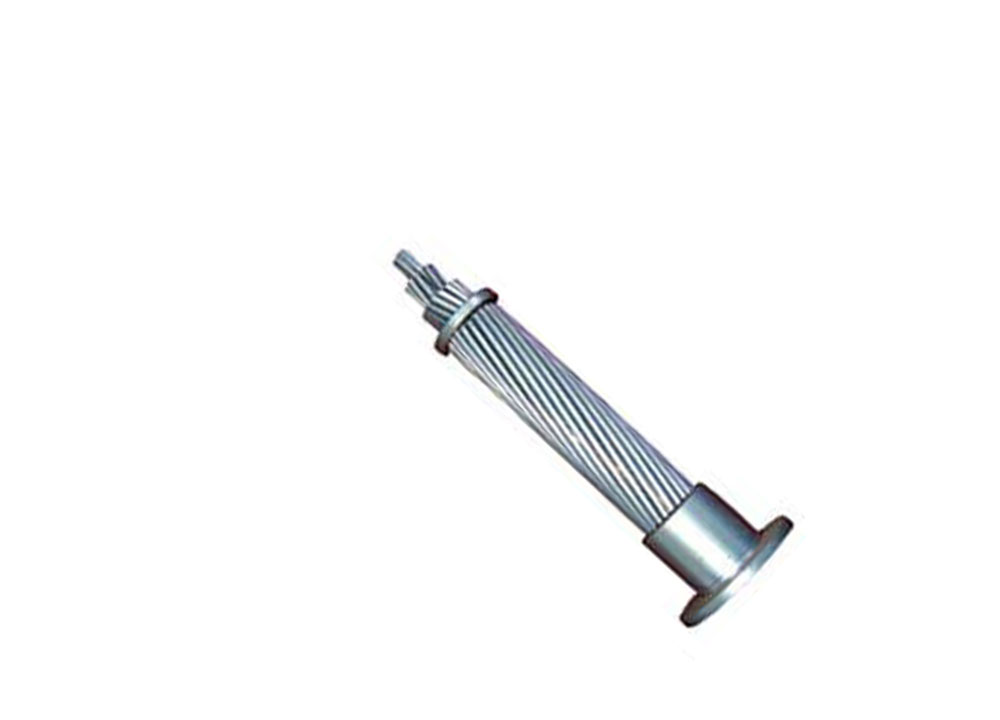

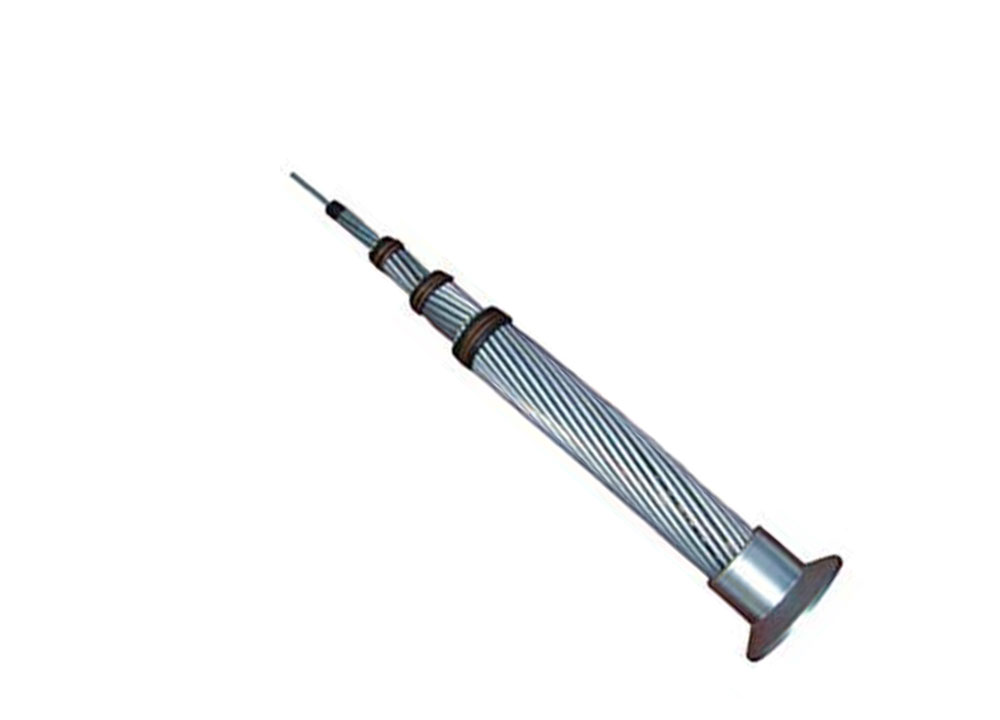

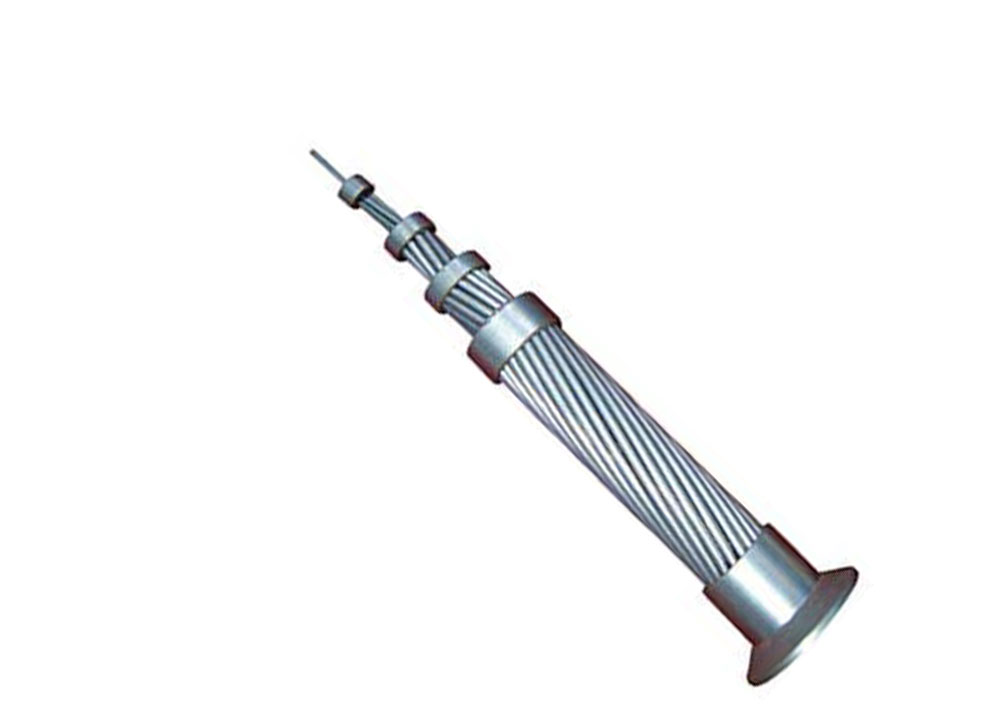

ACSR Conductor

  • Conductor:

    Aluminum/Steel

  • Standard:

    IEC61089, BS EN 50182, ASTM B232

Description Aluminum Conductor Steel Reinforced(ACSR)

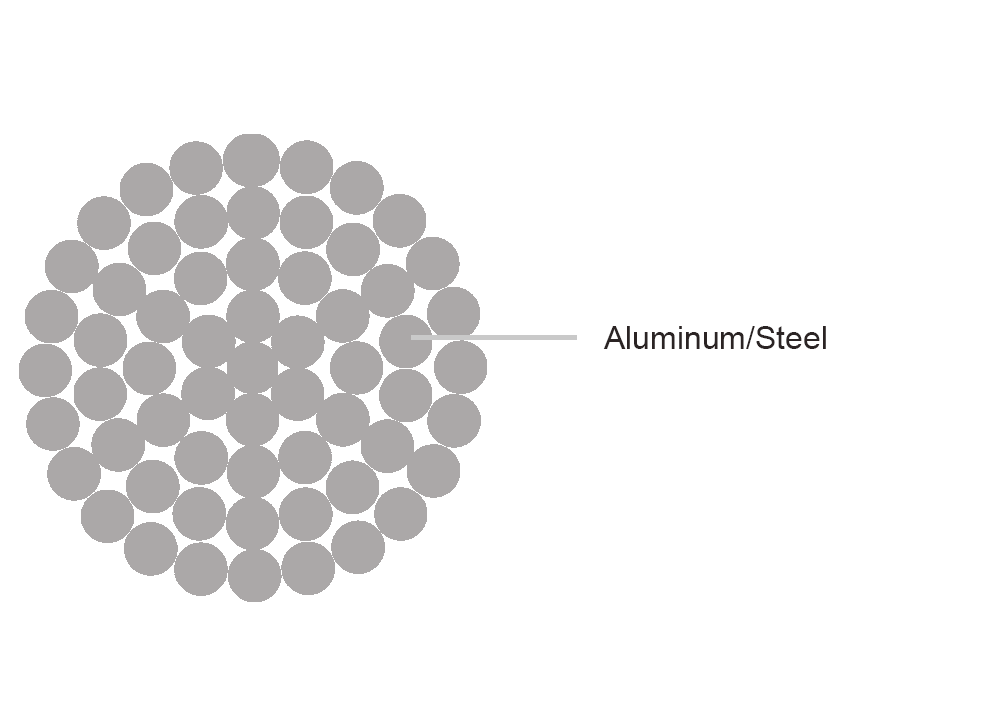

Conductor Aluminum/Steel
Standard IEC61089, BS EN 50182, ASTM B232
Dimensions – nominal cross-section Calculated cross-sections Construction Construction External diameter Weight Permitted stress Conductor resistance at 20 °C
Al/Steel   Al Steel       max.
mm² mm²     mm kg/km N Ω/km
16/2,5 17,8 6x1,80 1x1,80 5,4 62 5,825 1,878
25/4 27,8 6x2,25 1x2,25 6,8 97 9,030 1,200
35/6 40,0 6x2,70 1x2,70 8,1 140 12,660 0,835
44/32 75,7 14x2,00 7x2,40 11,2 378 45,500 0,657
50/8 56,3 6x3,20 1x3,20 9,6 196 17,140 0,595
50/30 81,0 12x2,33 7x2,33 11,7 383 44,225 0,564
70/12 81,3 26x1,85 7x1,44 11,7 285 26,315 0,413
95/15 109,7 26x2,15 7x1,67 13,6 384 35,140 0,306
95/55 152,8 12x3,20 7x3,20 16,0 722 80,200 0,299
105/75 181,5 14x3,10 19x2,25 17,5 907 106,635 0,274
120/20 141,4 26x2,44 7x1,90 15,5 496 44,885 0,237
120/70 193,3 12x3,60 7x3,60 18,0 913 98,195 0,236
125/30 157,7 30x2,33 7x2,33 16,3 595 57,800 0,226
150/25 173,1 26x2,70 7x3,10 17,1 607 54,315 0,194
170/40 211,9 30x2,70 7x2,70 18,9 798 77,040 0,168
185/30 213,6 26x3,00 7x2,33 19,0 748 66,225 0,157
210/35 243,2 26x3,20 7x2,49 20,3 852 74,950 0,138
210/50 261,6 30x3,00 7x3,00 21,0 986 92,275 0,136
230/30 260,7 24x3,50 7x2,33 21,0 878 73,030 0,125
240/40 282,5 26x3,45 7x2,68 21,8 990 86,460 0,119
265/35 297,8 24x3,74 7x2,49 22,4 1,003 82,955 0,109
300/50 353,7 26x3,86 7x3,00 24,4 1,239 105,120 0,949
305/40 344,1 54x2,68 7x2,68 24,1 1,160 99,305 0,949
340/30 369,1 48x3,00 7x2,33 25,0 1,177 92,505 0,085
360/57 416,5 26x4,20 7x3,20 26,4 1,449 125,245 0,080
360/57 417,5 26x4,20 19x1,96 26,6 1,468 125,245 0,080
380/50 431,5 54x3,00 7x3,00 27,0 1,454 120,990 0,076
385/35 420,1 48x3,20 7x2,49 26,7 1,341 104,315 0,075
435/55 490,6 54x3,20 7x3,20 28,8 1,654 136,275 0,059
450/40 488,2 48x3,45 7x2,68 28,7 1,557 120,195 0,064
490/65 553,9 54x3,40 7x3,40 30,6 1,868 152,915 0,059
495/35 528,2 45x3,74 7x2,49 29,9 1,639 120,280 0,058
510/45 555,5 48x3,68 7x2,87 30,7 1,775 134,295 0,057
550/70 621,3 54x3,60 7x3,60 32,4 2,094 167,530 0,051
560/50 611,2 48x3,86 7x3,00 32,2 1,950 146,300 0,051
570/40 610,3 45x4,02 7x2,68 32,2 1,895 138,000 0,051
650/45 698,5 45x4,30 7x2,87 34,4 2,169 155,550 0,044
680/85 764,8 54x4,00 19x2,40 36,0 2,573 210,055 0,043
Used as overhead line for transmission and distribution of electric power.
