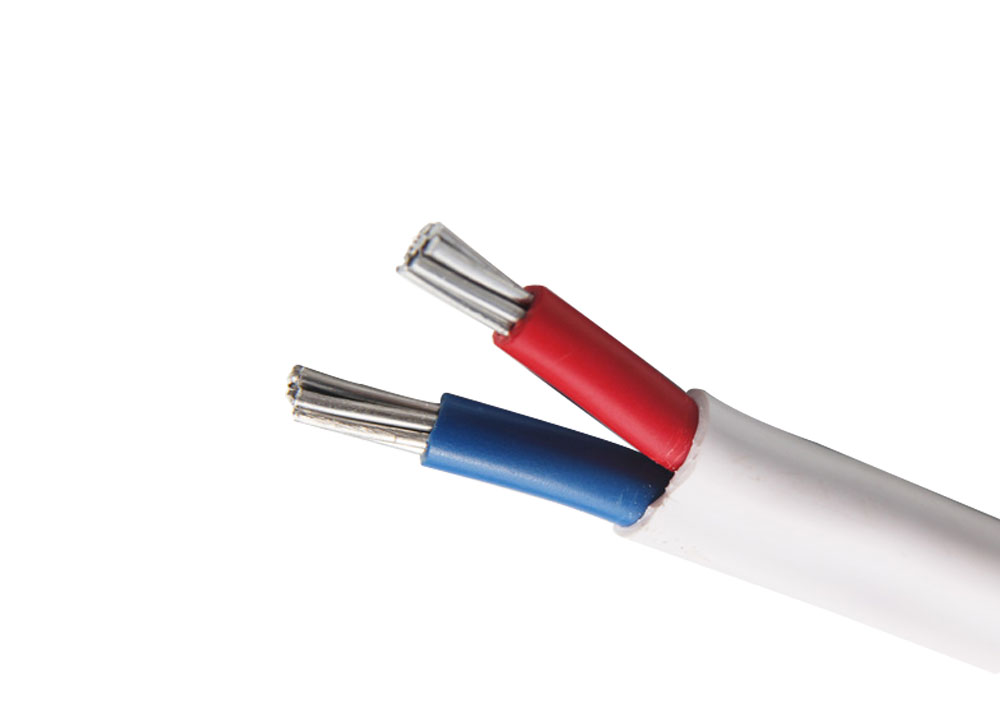

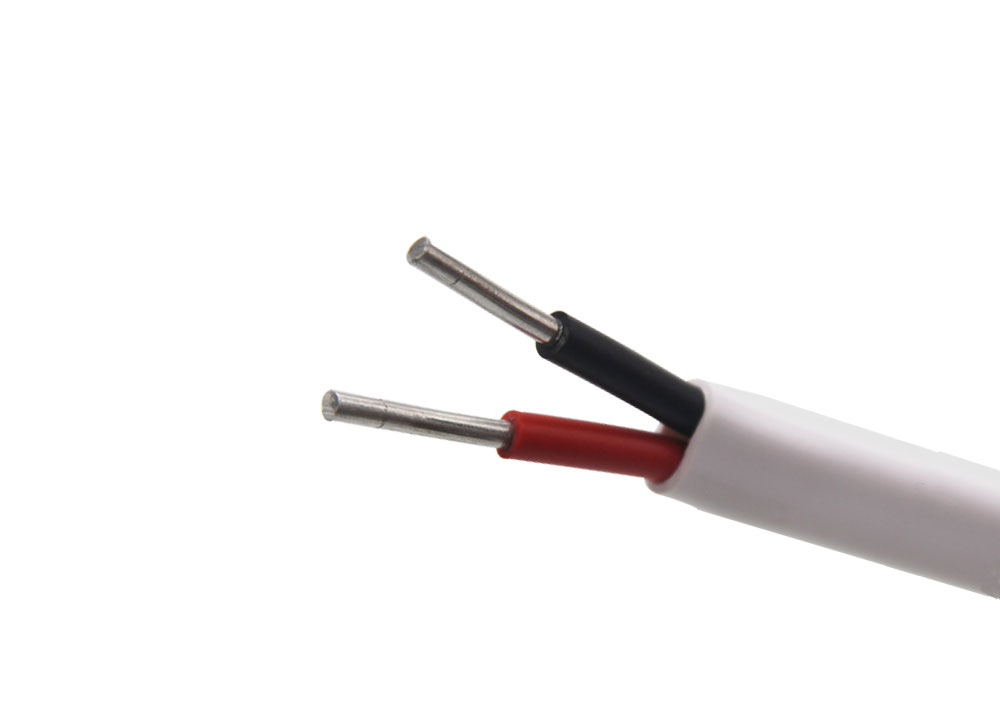

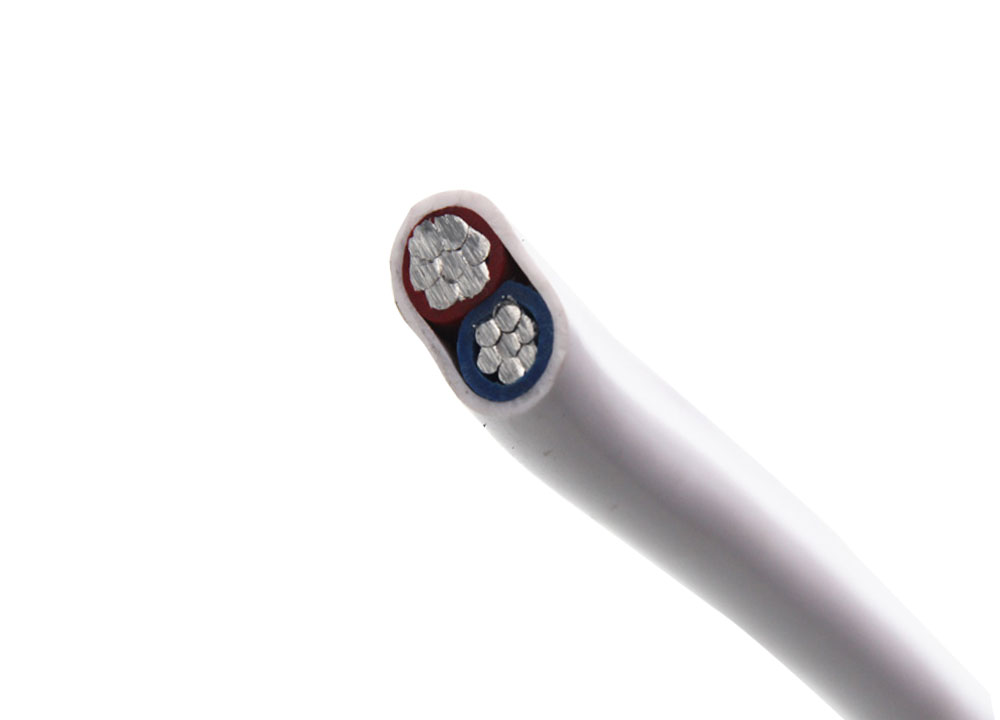

Aluminum Flat Cable

  • Conductor:

    Aluminum Conductor of Class 1/2 (Solid)

  • Insulation:

    PVC Compound

  • Insulation Color:

    Red, Blue, Yellow/Green or as request

  • Sheath:

    PVC Compound

  • Sheath Color:

    White, Black

  • Test Voltage:

    2000 V

  • Standard:

    JB8734.2

Description Aluminum Flat Cable
Conductor: Aluminum Conductor of Class 1/2 (Solid)
Insulation: PVC Compound
Insulation Color Red, Blue, Yellow/Green or as request
Sheath PVC Compound
Sheath Color White, Black
Temperature Range: -30 - 70℃
Nominal Voltage: 300/500V
Test Voltage: 2000 V
Minimal Bending Radius: 6D
Standard JB8734.2
Cores/
Norminal Section
Rated Voltage No of Wires Insulation Thickness Sheath Thickness Size Max.Conductor Resistance at 20℃ Min. Insulation Resistance at 70℃
(mm2)     (mm) (mm) (mm)   (MΩ.km)
          Upper Lowest
2×1.5 300/500V 1 0.7 0.9 4.4×7.0 5.3×8.5 - 0.011
2×2.5 300/500V 1 0.8 1 5.1×8.4 6.2×10.1 12.1 0.01
2×4 300/500V 1 0.8 1 5.6×9.2 6.7×11.1 7.41 0.0085
2×4 300/500V 7 0.8 1 5.7×9.5 6.9×11.5 - 0.008
2×6 300/500V 1 0.8 1.1 6.2×10.4 7.5×12.5 4.61 0.007
2×6 300/500V 7 0.8 1.1 6.4×10.8 7.8×13.0 - 0.0065
2×10 300/500V 7 1 1.2 7.9×13.4 9.5×16.2 3.08 0.0065
3×1.5 300/500V 1 0.7 0.9 4.4×9.6 5.3×11.7 - 0.011
3×2.5 300/500V 1 0.8 1 5.1×11.6 6.2×14.0 12.1 0.01
3×4 300/500V 1 0.8 1.1 5.8×13.1 7.0×15.8 7.41 0.0085
3×4 300/500V 7 0.8 1.1 5.9×13.5 7.1×16.3 - 0.008
3×6 300/500V 1 0.8 1.1 6.2×14.5 7.5×17.5 4.61 0.007
3×6 300/500V 7 0.8 1.1 6.4×15.1 7.8×18.2 - 0.0065
This product applies to electrical appliances, instrument and telecommunication device with rated voltage up to and including 300/500V. Maximum temperature allowance when the cables are for long term use : temperature shall not exceed 70°C.
