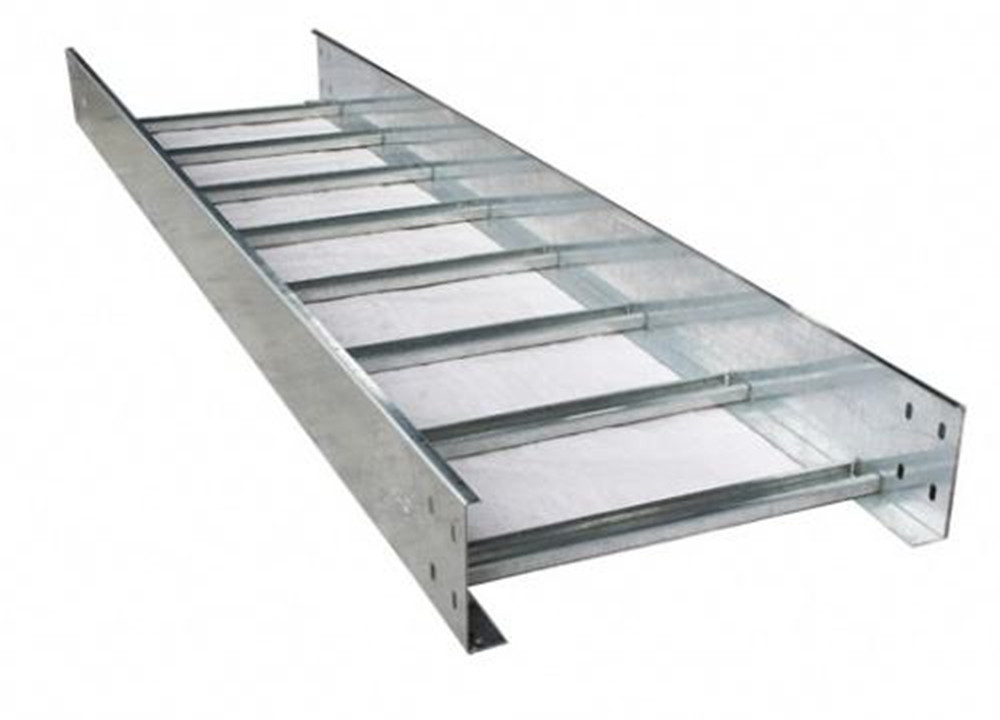

Cable Trays

  • Type:

    Cable Tray

  • Material:

    Steel/galvanized steel/Stainless Steel

  • Width:

    50, 100, 150, 300, 450, 600, 900 mm

  • Length:

    2.44m (8 ft), 3m (10 ft)

  • Side Rail Height:

    12, 15, 25, 50, 75, 100, 150, 200

  • Surface Finish:

    GI / Pre Galvanized

       In the electrical wiring of buildings, a cable tray system is used to support insulated electrical cables used for power distribution, control, and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction. They are especially useful in situations where changes to a wiring system are anticipated, since new cables can be installed by laying them in the tray, instead of pulling them through a pipe.

Type Cable Tray
Material Steel/galvanized steel/Stainless Steel
Width 50, 100, 150, 300, 450, 600, 900 mm
Length 2.44m (8 ft), 3m (10 ft)
Side Rail Height 12, 15, 25, 50, 75, 100, 150, 200
Surface Finish GI / Pre Galvanized




Cable Laying Width (mm)  Cable Laying Depth (mm) Overall Width (mm) Side Rail Height (mm)
150 45 150 50
300 45 300 50
450 45 450 50
600 45 600 50

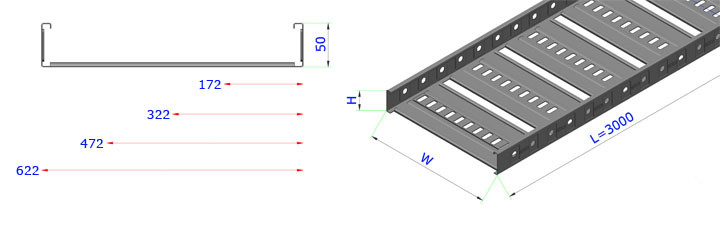

W(mm) H(mm) L(mm)
50 35 3000
50 3000
100 3000
100 35 3000
50 3000
100 3000
150 35 3000
50 3000
100 3000
200 35 3000
50 3000
100 3000
300 35 3000
50 3000
100 3000
400 35 3000
50 3000
100 3000
450 35 3000
50 3000
100 3000
600 35 3000
50 3000
100 3000
