Instrument cable

  • Conductor:

    Stranded Copper Conductor

  • Insulation:

    PVC/PE/XLPE

  • Insulation Color:

    Red, Blue, Grey, or as request

  • Sheath:

    PVC/LSOH

  • Sheath Color:

    White, Black, Grey

  • Shielding(Screen):

    Aluminum-plastic composite shield

  • Nominal Voltage:

    450/750V

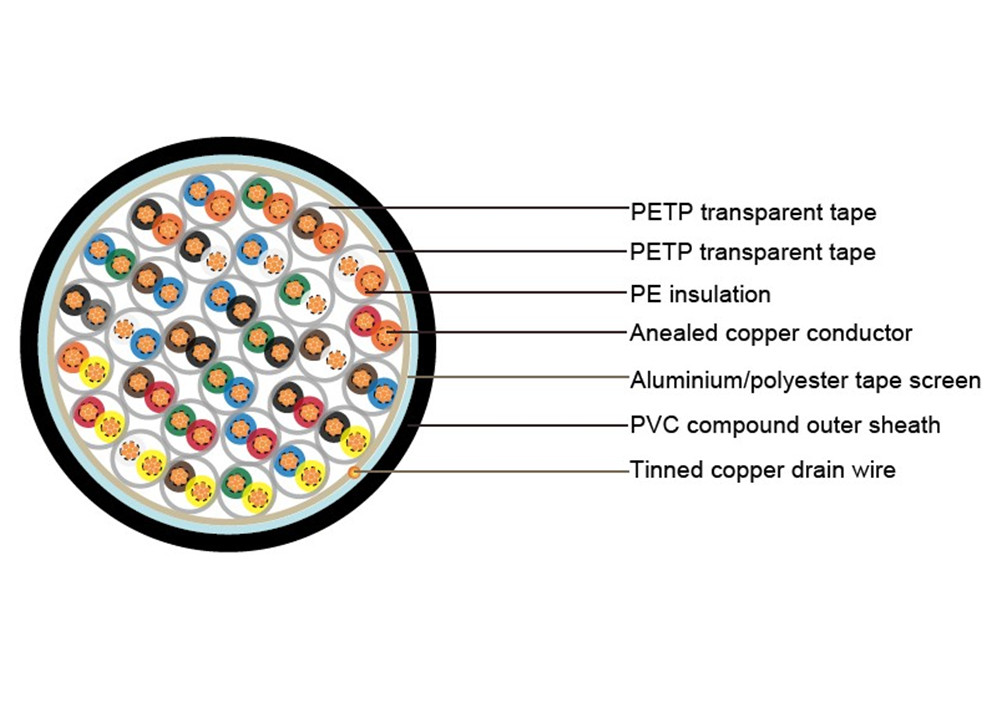

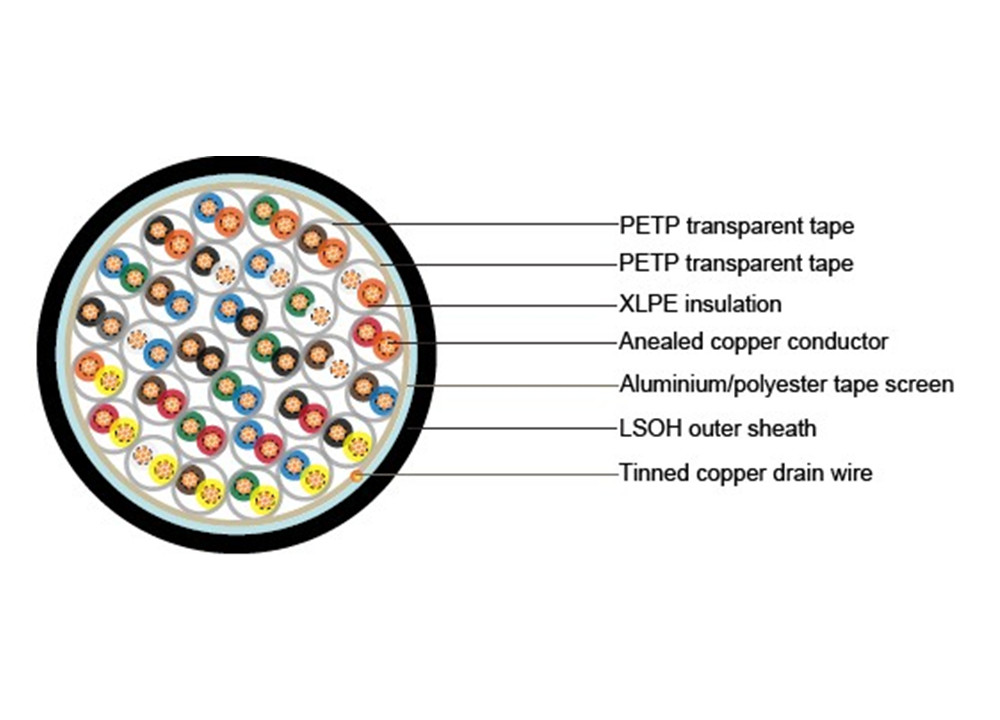

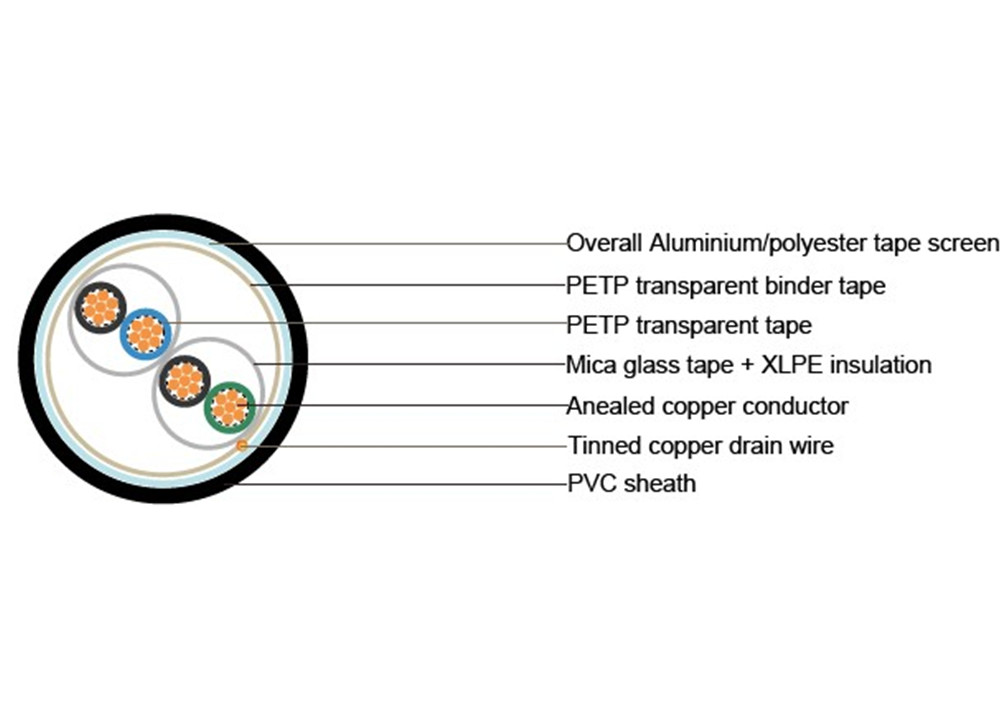

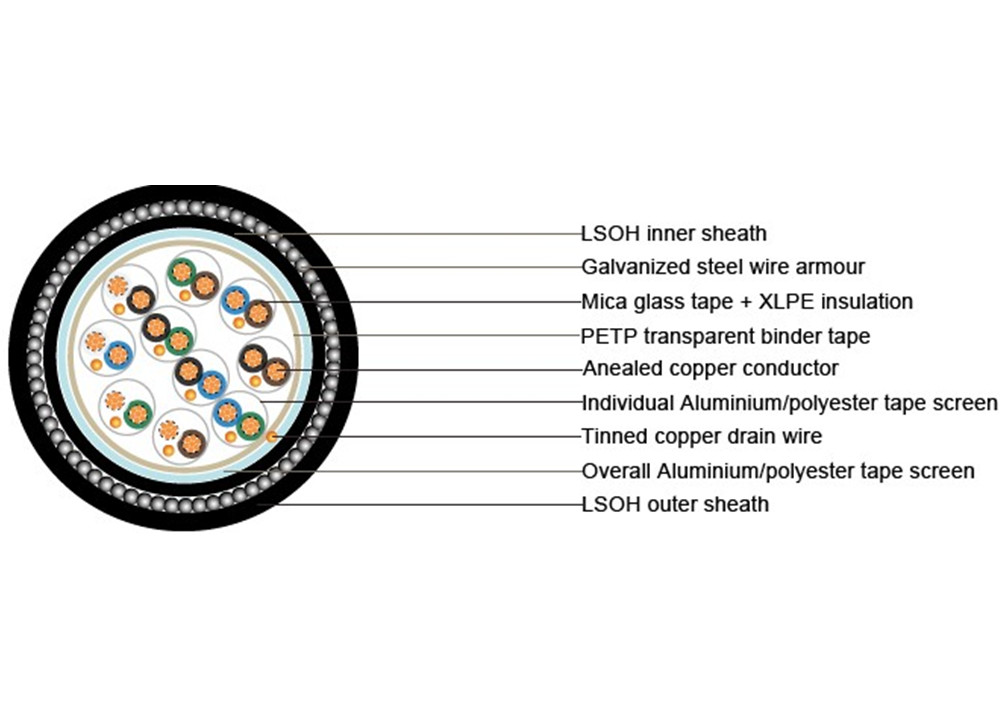

CONDUCTOR Annealed copper, sizes: 0.5mm² and 0.75mm² mulitistranded(Class 5), 0.5 mm², 1.0 mm² solid(Class 1), 1.5mm² or 2.5mm², multistranded(Class 2) to BS6360
INSULATION PE (Polyethylene) type 03 to BS6234
PAIRING Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
COLOUR CODE See technical information
BINDER TAPE PETP transparent tape
COLLECTIVE SCREEN Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm²
OUTER SHEATH PVC Sheath, type TM 1 or type 6 to BS 6746
SHEATH COLOUR Black or blue
NO.OF PAIRS NO.AND DIA. OF WIRES NOMINAL CONDUCTOR CROSS-SECTIONAL AREA NOMINAL RADIAL THICKNESS OF INSULATION NOMINAL THICKNESS OF SHEATH NOMINAL DIA. OF CABLE APPROX.WEIGHT



NO./MM MM2 MM MM MM KG/KM
1 1/0.8 0.5 0.5 0.8 5.5 35
2 1/0.8 0.5 0.5 0.8 6.8 55
5 1/0.8 0.5 0.5 1.1 10.9 125
10 1/0.8 0.5 0.5 1.2 14.4 215
15 1/0.8 0.5 0.5 1.2 16.5 300
20 1/0.8 0.5 0.5 1.3 18.8 385
30 1/0.8 0.5 0.5 1.3 22.3 545
50 1/0.8 0.5 0.5 1.5 28.5 875
1 16/0.2 0.5 0.6 0.8 6.2 60
2 16/0.2 0.5 0.6 0.8 7.6 80
5 16/0.2 0.5 0.6 1.1 12.4 210
10 16/0.2 0.5 0.6 1.2 16.5 340
15 16/0.2 0.5 0.6 1.3 19.2 440
20 16/0.2 0.5 0.6 1.3 21.7 570
30 16/0.2 0.5 0.6 1.5 26.4 780
50 16/0.2 0.5 0.6 1.7 33.4 1130
1 24/0.2 0.75 0.6 0.8 6.7 75
2 24/0.2 0.75 0.6 0.9 8.4 100
5 24/0.2 0.75 0.6 1.2 13.8 250
10 24/0.2 0.75 0.6 1.3 18.4 450
15 24/0.2 0.75 0.6 1.5 21.1 600
20 24/0.2 0.75 0.6 1.5 24.4 920
30 24/0.2 0.75 0.6 1.7 29.5 980
50 24/0.2 0.75 0.6 2 37.6 1690
1 1/1.13 1 0.6 0.8 6.6 85
2 1/1.13 1 0.6 0.8 8 115
5 1/1.13 1 0.6 1.2 13.5 290
10 1/1.13 1 0.6 1.2 17.7 500
15 1/1.13 1 0.6 1.3 20.6 670
20 1/1.13 1 0.6 1.5 23.8 950
30 1/1.13 1 0.6 1.5 28.4 1030
50 1/1.13 1 0.6 2 36.6 1750
1 7/0.53 1.5 0.6 0.8 7.5 100
2 7/0.53 1.5 0.6 0.9 9.3 150
5 7/0.53 1.5 0.6 1.2 15.6 360
10 7/0.53 1.5 0.6 1.3 20.9 690
15 7/0.53 1.5 0.6 1.5 24.6 880
20 7/0.53 1.5 0.6 1.5 27.8 1230
30 7/0.53 1.5 0.6 1.7 33.7 1560
50 7/0.53 1.5 0.6 2 43 2400



Mainly used in indoor installation, also installed in a humid environment. In the industrial production process to complete the pass.
Transmission of information, and voice signals, and such cables can also be used for interconnection between electrical equipment and instruments, usually used in petroleum Industry.
