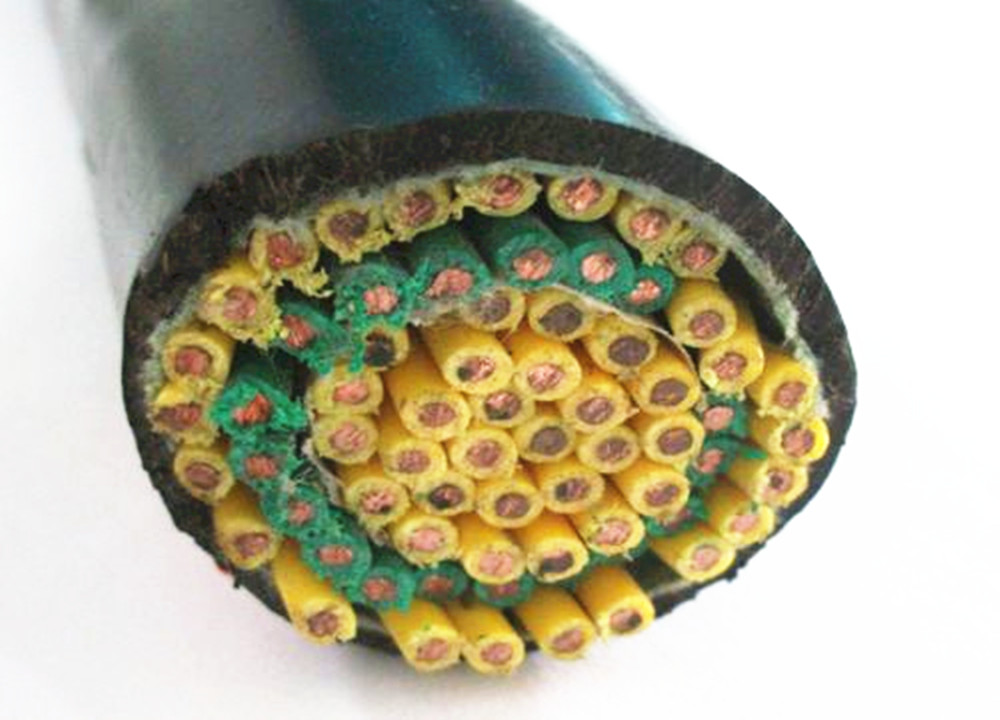

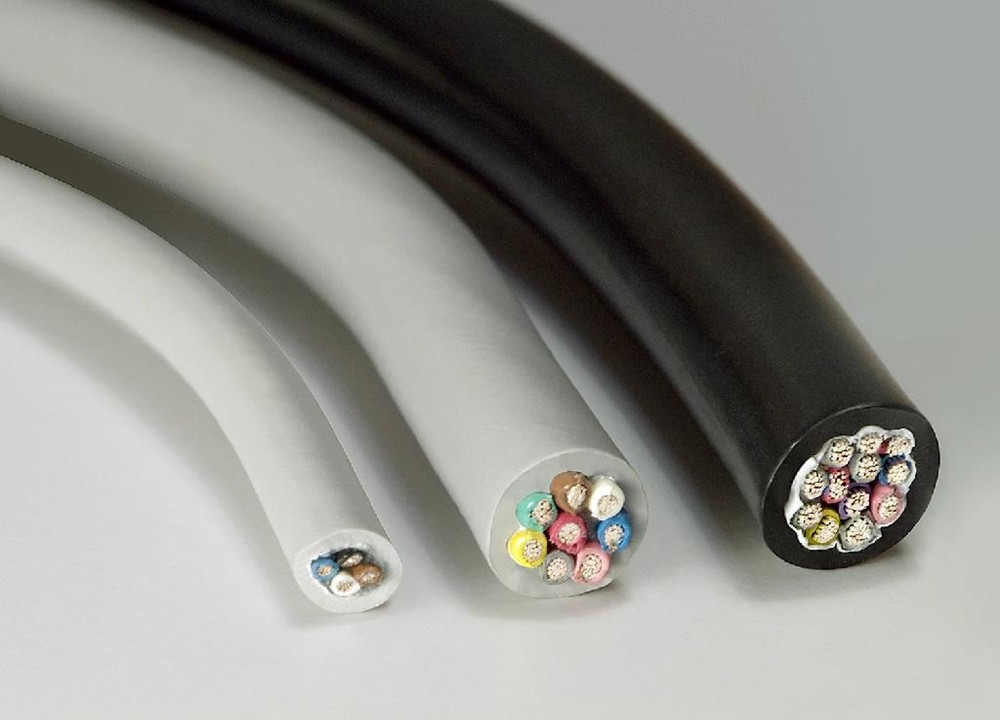

Solid Unshielded Control Cable

  • Conductor::

    Pure Copper Conductor of Class 1(Solid)

  • Insulation::

    PVC Compound

  • Sheath::

    PVC Compound

  • Rated Voltage::

    450/750V

  • Standard::

    GB/T9330-2008

Description Solid Unshielded Control Cable
Conductor:
Stranded Copper Conductor of Class 1(Solid)
Insulation:
PVC Compound
Insulation Color Red, Blue, Grey, Yellow/Green or as request
Sheath PVC Compound
Sheath Color White, Black, Grey
Shielding(Screen)
Aluminum Alloy, Tinned Copper, Pure Copper
Temperature Range:

-30 - 70℃

Nominal Voltage:
300/500V, 450/750 V
Test Voltage:
2000 V
Minimal Bending Radius:
4D for D < 8 mm   5D for 8 - 12 mm   6D for D > 12
Standard IEC 60552,GB/T9330-2008



Cross-section Conductor
Construction
External
diameter
Conductor
resistance
at 20 °C
Insulation
resistance
at 70 °C
Short
circuit
current 1s
Permited
tensile
load
Cable
weight
  nominal min-max. max. min. nominal max. cca
mm² n x mm mm Ω/km MΩkm kA N kg/km
1 x 1,5 1 x 1,38 5,2 - 6,2 12,10 0,0100 0,17 75 45
1 x 2,5 1 x 1,78 5,8 - 6,8 7,41 0,0094 0,29 125 70
1 x 4 1 x 2,26 6,4 - 7,6 4,61 0,0087 0,46 200 80
1 x 6 1 x 2,70 6,8 - 8,2 3,08 0,0074 0,69 300 105
1 x 10 1 x 3,5 8,0 - 9,4 1,83 0,0072 1,15 500 155
1 x 16 7 x 1,70 9,4 - 11,0 1,15 0,0053 1,84 800 230
1 x 25 7 x 2,13 12,2 - 13,3 0,73 0,0051 2,88 1250 325

2 x 1,5 1 x 1,38 8,4 - 9,8 12,10 0,0100 0,17 150 115
2 x 2,5 1 x 1,78 9,6 - 11,0 7,41 0,0094 0,29 250 190
2 x 4 1 x 2,26 11,0 - 12,5 4,61 0,0087 0,46 400 -

3 x 1,5 1 x 1,38 8,8 - 10,5 12,10 0,0100 0,17 225 135
3 x 2,5 1 x 1,78 10,0 - 11,5 7,41 0,0094 0,29 375 190
3 x 4 1 x 2,26 11,5 - 13,0 4,61 0,0087 0,46 600 265
3 x 6 1 x 2,70 12,0 - 15,0 3,08 0,0074 0,69 900 315
3 x 10 1 x 3,5 16,0 - 18,0 1,83 0,0072 1,15 1500 465

4 x 1,5 1 x 1,38 9,5 - 11,0 12,10 0,0100 0,17 300 160
4 x 2,5 1 x 1,78 11,0 - 12,5 7,41 0,0094 0,29 500 230
4 x 4 1 x 2,26 12,5 - 14,5 4,61 0,0087 0,46 800 330
4 x 6 1 x 2,70 14,5 - 16,5 3,08 0,0074 0,69 1200 460
4 x 10 1 x 3,5 16,5 - 19,0 1,83 0,0072 1,15 2000 690
4 x 16 7 x 1,70 20,5 - 23,5 1,15 0,0053 1,84 3200 1090
4 x 25 7 x 2,13 25,0 - 28,5 0,73 0,0051 2,88 5000 1640
4 x 35 7 x 2,52 27,5 - 32,0 0,52 0,0045 4,02 7000 2090

5 x 1,5 1 x 1,38 9,9 - 12,0 12,10 0,0100 0,17 375 190
5 x 2,5 1 x 1,78 11,5 - 13,5 7,41 0,0094 0,29 625 270
5 x 4 1 x 2,26 14,0 - 16,5 4,61 0,0087 0,46 1000 410
5 x 6 1 x 2,70 15,5 - 18,0 3,08 0,0074 0,69 1500 540
5 x 10 1 x 3,5 18,0 - 21,0 1,83 0,0072 1,15 2500 850
5 x 10 7 x 1,35 18,5 - 21,5 1,83 0,0065 1,15 2500 870
5 x 16 7 x 1,70 22,5 - 26,0 1,15 0,0053 1,84 4000 1350
5 x 25 7 x 2,13 27,5 - 31,5 0,73 0,0051 2,88 6250 1990

7 x 1,5 1 x 1,38 11,0 - 13,0 12,10 0,0100 0,17 525 235
10 x 1,5 1 x 1,38 13,9 - 15,6 12,10 0,0100 0,17 750 330
12 x 1,5 1 x 1,38 14,2 - 16,1 12,10 0,0100 0,17 900 400

7 x 2,5 1 x 1,78 12,7 -14,3 7,41 0,0094 0,29 875 350
 The product is used for control,loop control & line protection when the rated voltage is 450/750V or less.
