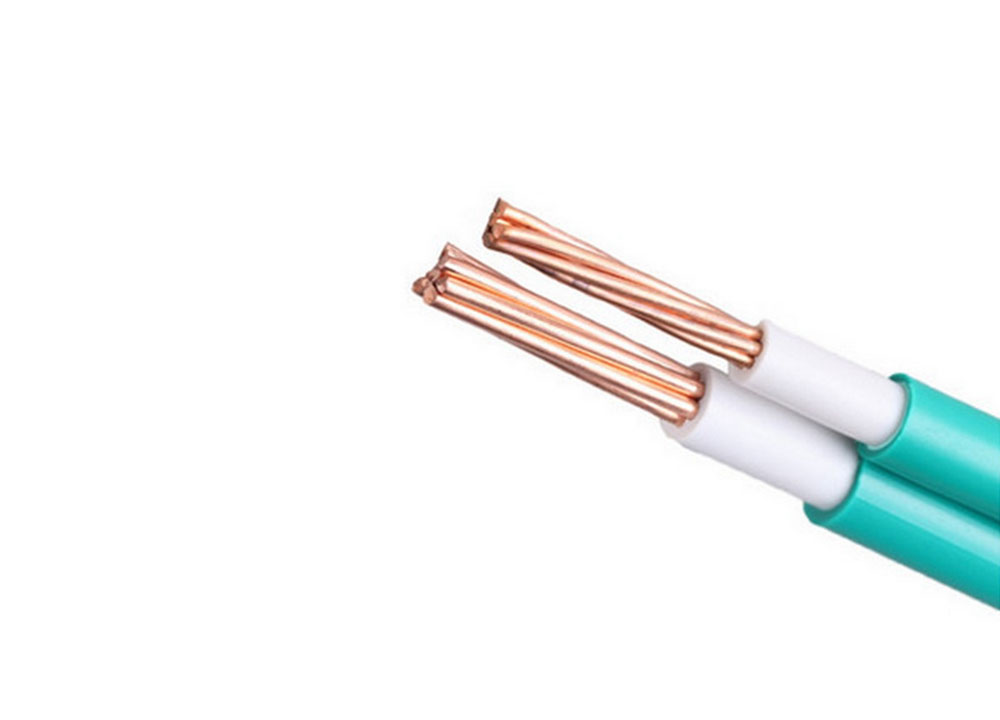

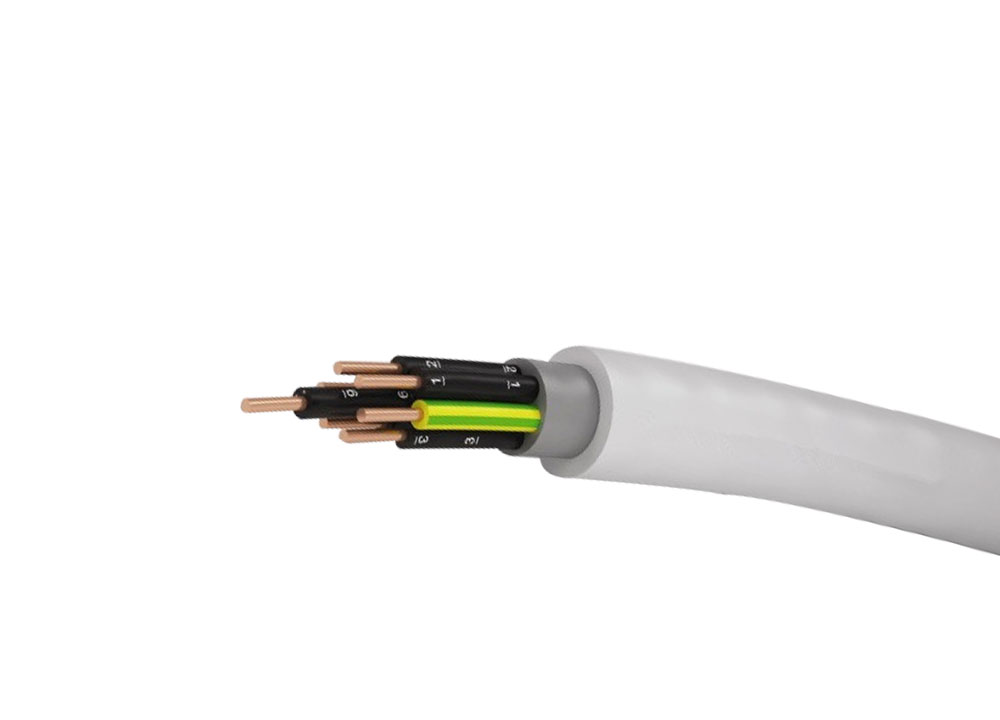

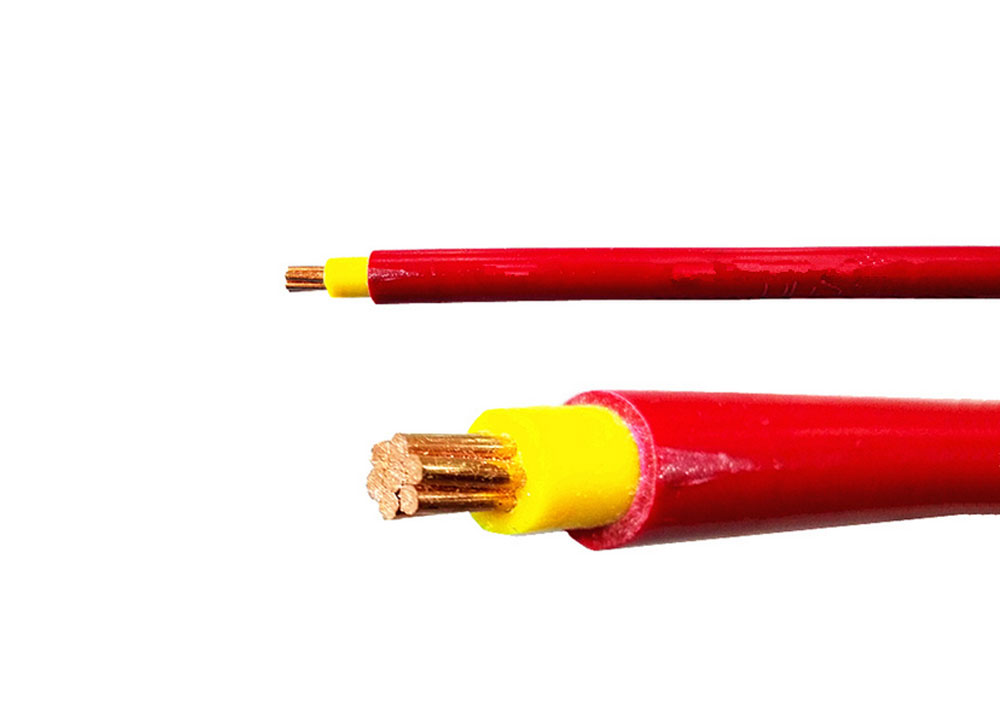

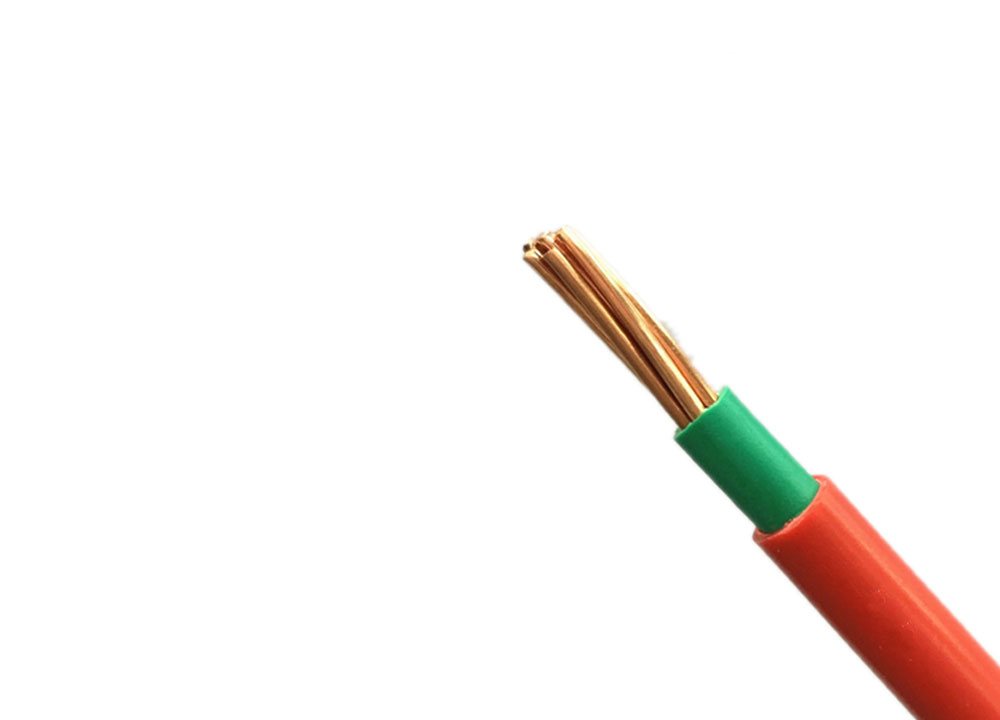

Multicore Solid Cable

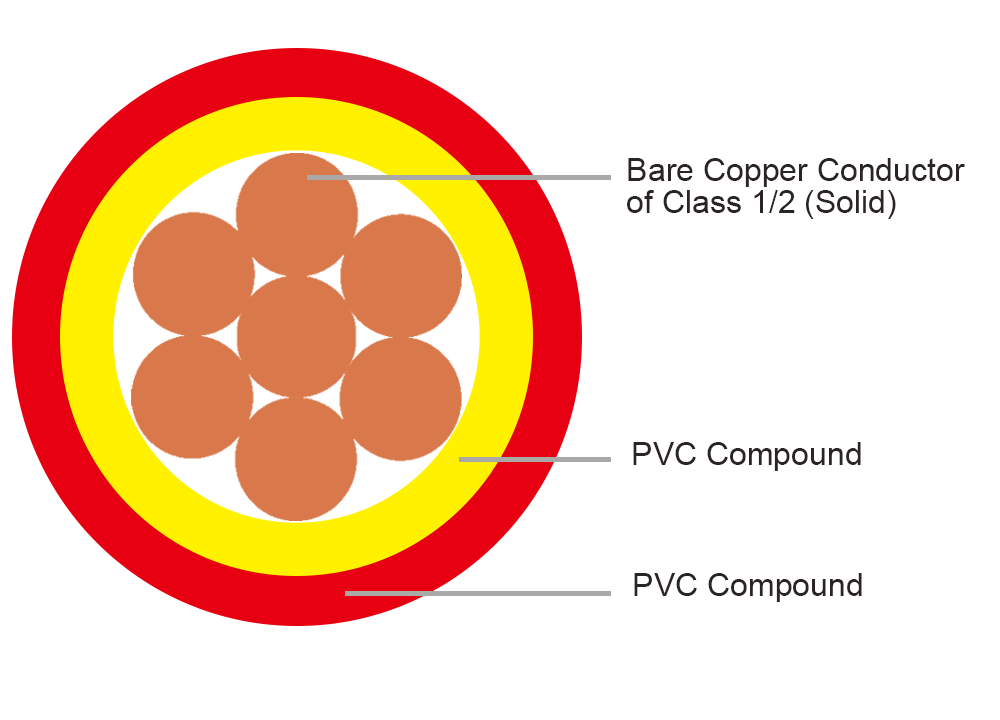

  • Conductor:

    Bare Copper Conductor of Class 1/2 (Solid)

  • Sheath:

    PVC Compound

  • Insulation:

    PVC Compound

  • Temperature Range:

    -30 - 70℃

  • Nominal Voltage:

    300/500V, 450/750 V

  • Test Voltage:

    2000 V

  • Standard:

    Standard IEC 60227, JB8734.2

Description Multicore Solid Cable
Conductor: Bare Copper Conductor of Class 1/2 (Solid)
Insulation: PVC Compound
Insulation Color Red, Blue, Grey, Yellow/Green or as request
Sheath PVC Compound
Sheath Color White, Black, Grey
Temperature Range: -30 - 70℃
Nominal Voltage: 300/500V, 450/750 V
Test Voltage: 2000 V
Minimal Bending Radius: 6D
Standard IEC 60227, JB8734.2
Cores x conductor
cross-section
Conductor construction  External diameter Conductor resistance
at 20 °C
Insulation resistance at 70 °C Short circuit current 1s Permited tensile load Cable weight
  nominal min-max. max. min. nominal max. cca
mm² n x mm mm Ω/km MΩkm kA N kg/km
1 x 1,5 1 x 1,38 5,2 - 6,2 12,10 0,0100 0,17 75 45
1 x 2,5 1 x 1,78 5,8 - 6,8 7,41 0,0094 0,29 125 70
1 x 4 1 x 2,26 6,4 - 7,6 4,61 0,0087 0,46 200 80
1 x 6 1 x 2,70 6,8 - 8,2 3,08 0,0074 0,69 300 105
1 x 10 1 x 3,5 8,0 - 9,4 1,83 0,0072 1,15 500 155
1 x 16 7 x 1,70 9,4 - 11,0 1,15 0,0053 1,84 800 230
1 x 25 7 x 2,13 12,2 - 13,3 0,73 0,0051 2,88 1250 325
2 x 1,5 1 x 1,38 8,4 - 9,8 12,10 0,0100 0,17 150 115
2 x 2,5 1 x 1,78 9,6 - 11,0 7,41 0,0094 0,29 250 190
2 x 4 1 x 2,26 11,0 - 12,5 4,61 0,0087 0,46 400 -
3 x 1,5 1 x 1,38 8,8 - 10,5 12,10 0,0100 0,17 225 135
3 x 2,5 1 x 1,78 10,0 - 11,5 7,41 0,0094 0,29 375 190
3 x 4 1 x 2,26 11,5 - 13,0 4,61 0,0087 0,46 600 265
3 x 6 1 x 2,70 12,0 - 15,0 3,08 0,0074 0,69 900 315
3 x 10 1 x 3,5 16,0 - 18,0 1,83 0,0072 1,15 1500 465
4 x 1,5 1 x 1,38 9,5 - 11,0 12,10 0,0100 0,17 300 160
4 x 2,5 1 x 1,78 11,0 - 12,5 7,41 0,0094 0,29 500 230
4 x 4 1 x 2,26 12,5 - 14,5 4,61 0,0087 0,46 800 330
4 x 6 1 x 2,70 14,5 - 16,5 3,08 0,0074 0,69 1200 460
4 x 10 1 x 3,5 16,5 - 19,0 1,83 0,0072 1,15 2000 690
4 x 16 7 x 1,70 20,5 - 23,5 1,15 0,0053 1,84 3200 1090
4 x 25 7 x 2,13 25,0 - 28,5 0,73 0,0051 2,88 5000 1640
4 x 35 7 x 2,52 27,5 - 32,0 0,52 0,0045 4,02 7000 2090
5 x 1,5 1 x 1,38 9,9 - 12,0 12,10 0,0100 0,17 375 190
5 x 2,5 1 x 1,78 11,5 - 13,5 7,41 0,0094 0,29 625 270
5 x 4 1 x 2,26 14,0 - 16,5 4,61 0,0087 0,46 1000 410
5 x 6 1 x 2,70 15,5 - 18,0 3,08 0,0074 0,69 1500 540
5 x 10 1 x 3,5 18,0 - 21,0 1,83 0,0072 1,15 2500 850
5 x 10 7 x 1,35 18,5 - 21,5 1,83 0,0065 1,15 2500 870
5 x 16 7 x 1,70 22,5 - 26,0 1,15 0,0053 1,84 4000 1350
5 x 25 7 x 2,13 27,5 - 31,5 0,73 0,0051 2,88 6250 1990
7 x 1,5 1 x 1,38 11,0 - 13,0 12,10 0,0100 0,17 525 235
10 x 1,5 1 x 1,38 13,9 - 15,6 12,10 0,0100 0,17 750 330
12 x 1,5 1 x 1,38 14,2 - 16,1 12,10 0,0100 0,17 900 400
7 x 2,5 1 x 1,78 12,7 -14,3 7,41 0,0094 0,29 875 350

Installation cable suitable for household and industrial usage. Laid on or under plaster, in walls or concrete, without special mechanical protection, but not in dry or pre-stressed concrete. Suitable for dry, same as damp or wet environment; for internal or external application (only if the cable is protected against direct sunlight).
