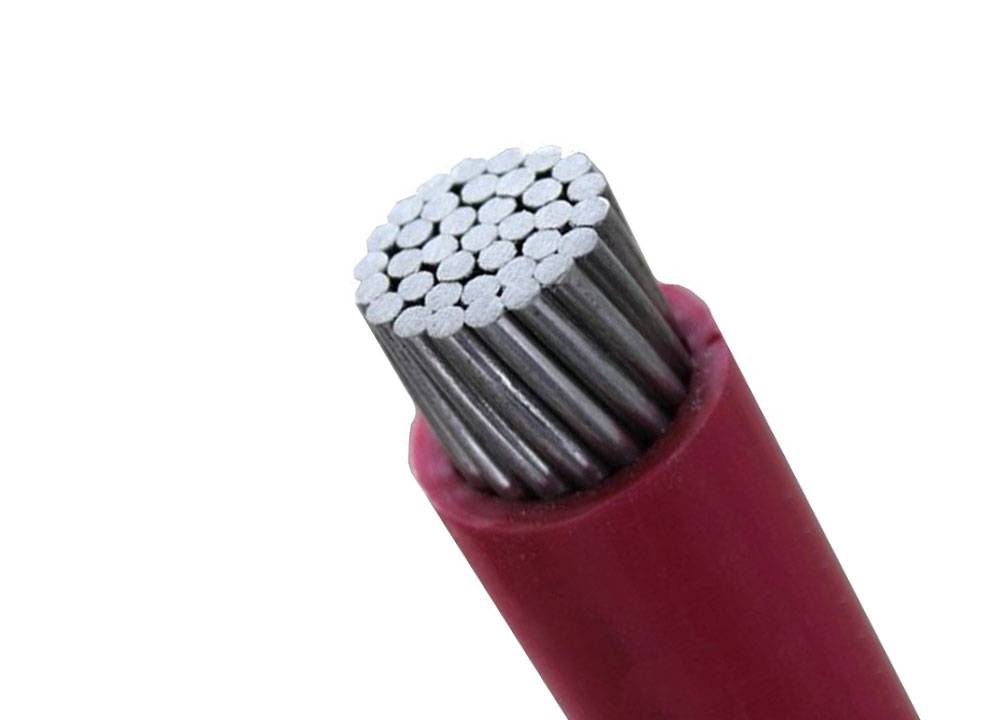

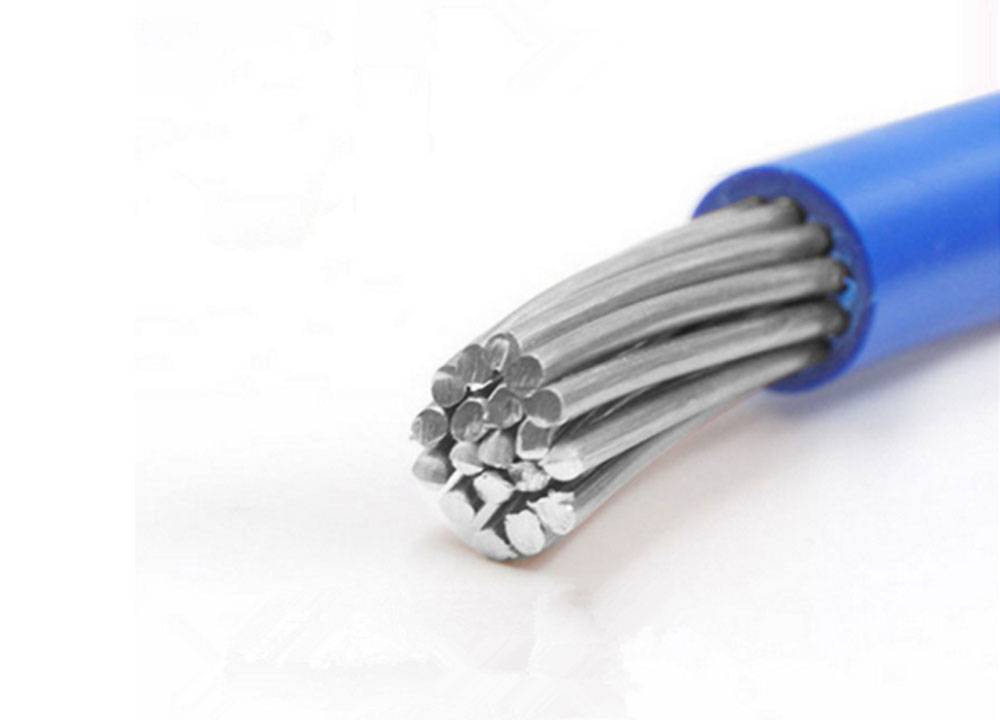

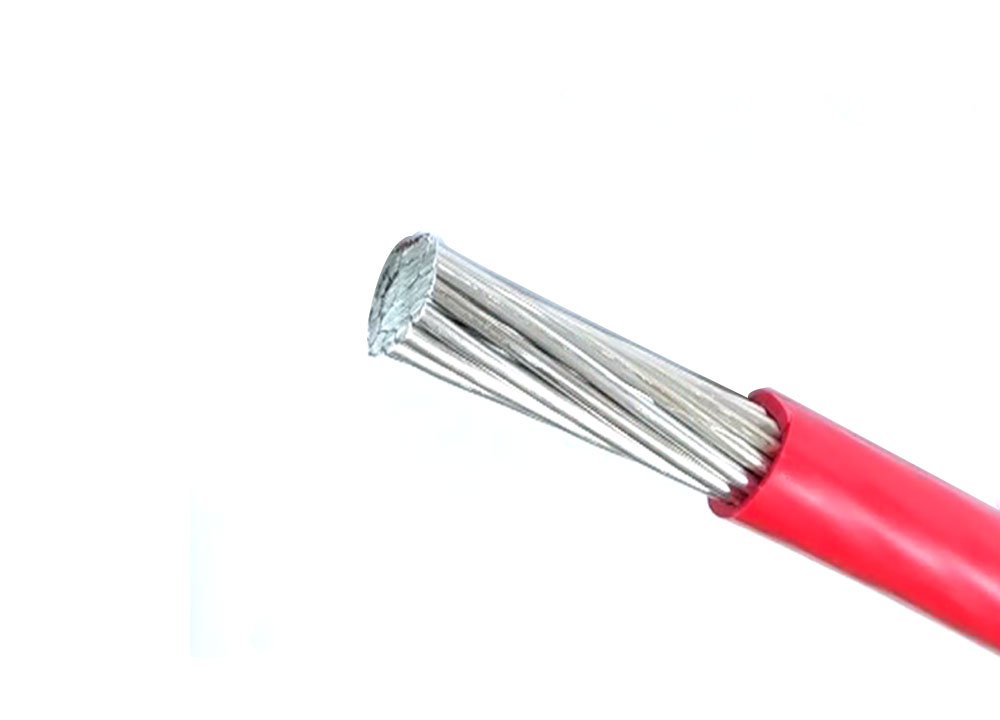

Aluminum PVC Insulated Cable

  • Conductor:

    Aluminum Conductor of Class 1/2 (Solid)

  • Insulation:

    PVC Compound

  • Temperature Range:

    -30 - 70℃

  • Nominal Voltage:

    300/500V, 450/750 V

  • Test Voltage:

    2500 V

  • Minimal Bending Radius:

    4D

  • Standard:

    IEC 60552

Description
Single Core Aluminum Cable

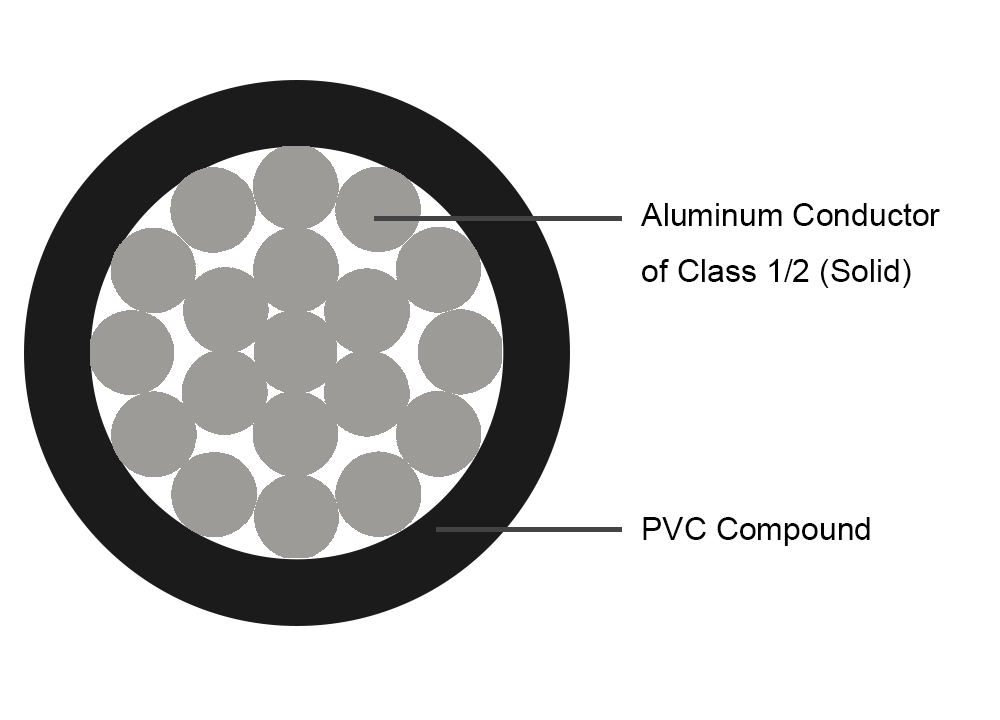

Conductor:
Aluminum Conductor of Class 1/2 (Solid)
Insulation:
PVC Compound

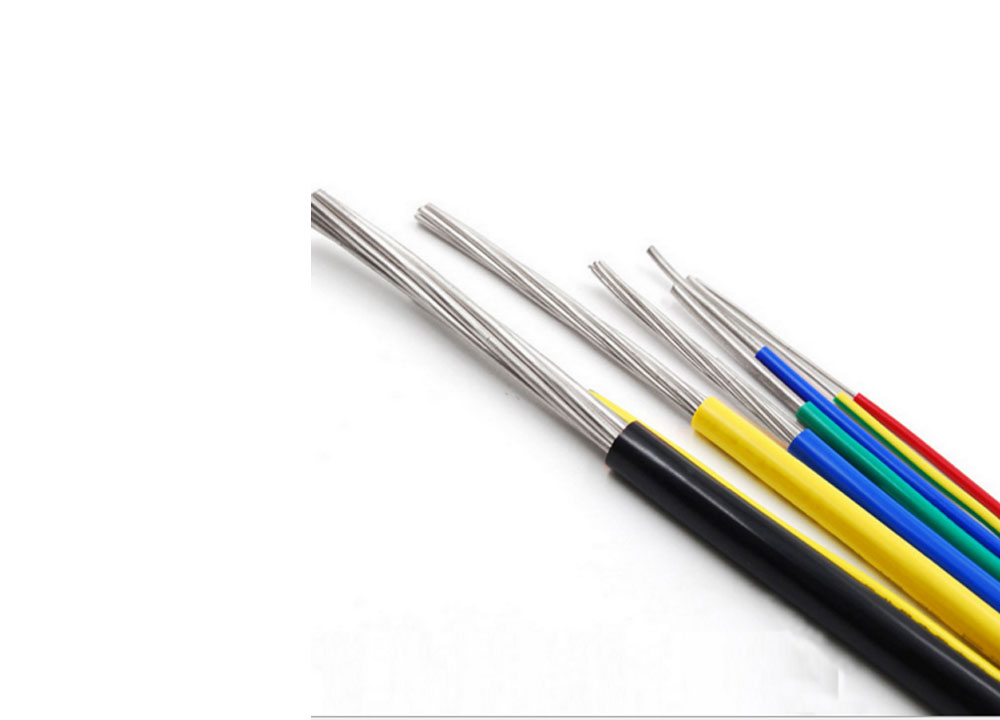

Insulation Color
Red, Blue, Green, Yellow, Brown, Black, Grey, White, Pink, Orange, Yellow/Green
Temperature Range:

-30 - 70℃

Nominal Voltage:
300/500V, 450/750 V
Test Voltage:
2500 V
Minimal Bending Radius:
4D
Standard
IEC 60552
Nominal section  Conductor construction Max cable diameter Insulation Thickness Conductor  Max resistance at 20℃ Insulation resistance at 70°C Reference weight
mm2 n/mm mm mm ≤Ω/km ≤Ω/km kg/km
1.5 1/1.38 3.3 0,7   0,0100 11
2.5 1/1.78 3.9 0,8 11.8 0,0095 17
4 1/2.55 4.4 0,8 7.39 0,0078 22
6 7/0.85 4.8 0,8 3.08 0,0068 29
10 7/1.35 7 1,0 1.83 0,0065 62
16 7/1.70 8 1,0 1.15 0,0053 78
25 7/2.1 10 1,2 0.73 0,0050 118
35 7/2.5 11.5 1,2 0.52 0,0043 156
50 19/1.78 13 1,4 0.39 0,0042 215
70 19/2.14 15 1,4 0.27 0,0036 282
95 19/2.52 17.5 1,6 0.19 0,0036 385
120 37/2.03 19 1,6 0.15 0,0032 431
150 37/2.25 21 1,8 0.12 0,0032 539
185 37/2.52 23.5 2,0 0.1 0,0032 666
240 61/2.25 26.5 2,2 0.08 0,0031 857
300 61/2.52 29.5 2.4 0.06 0.003 1070
400 61/2.85 33 2.6 0.05 0.0028 1390
The product is suitable for power installation, fixed wiring or flexible connection for electrical appliances with rated voltage of 450/750V and below.
