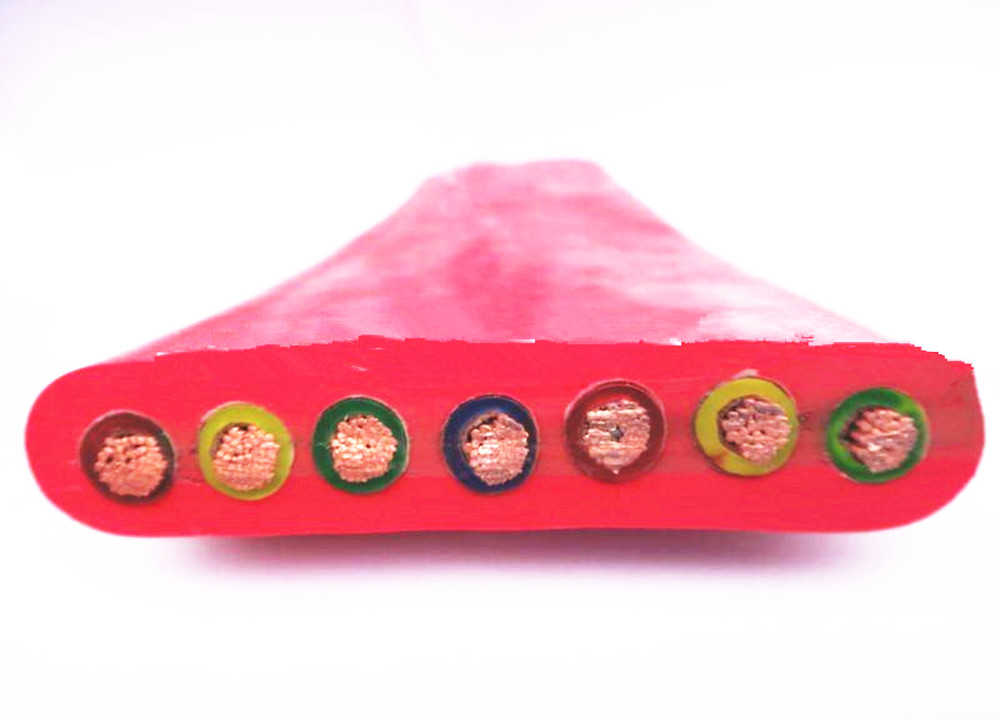

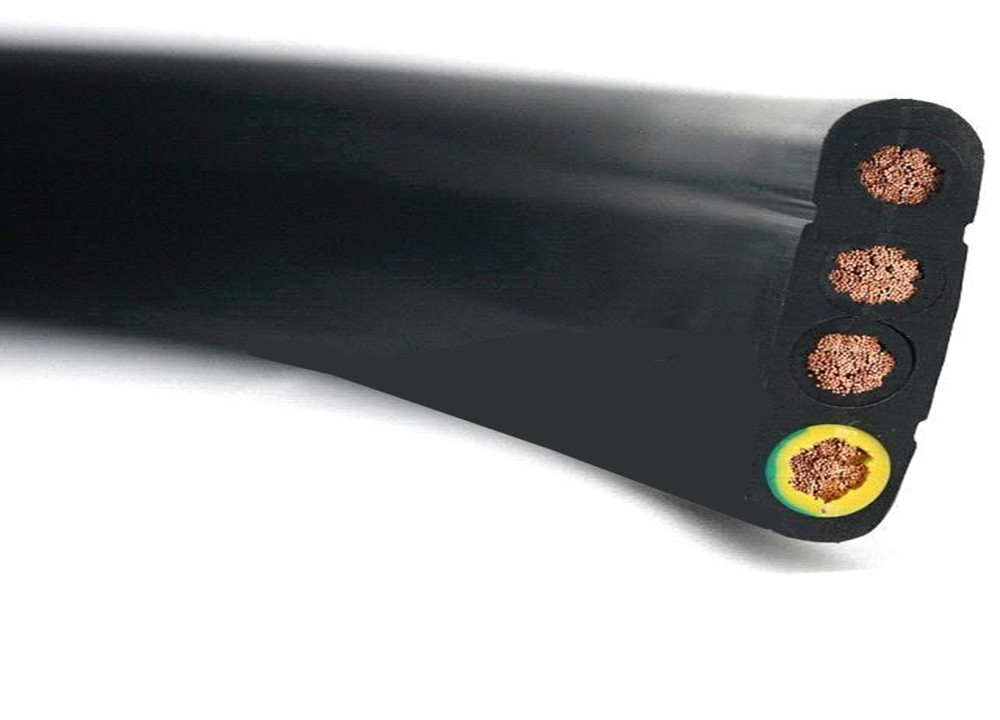

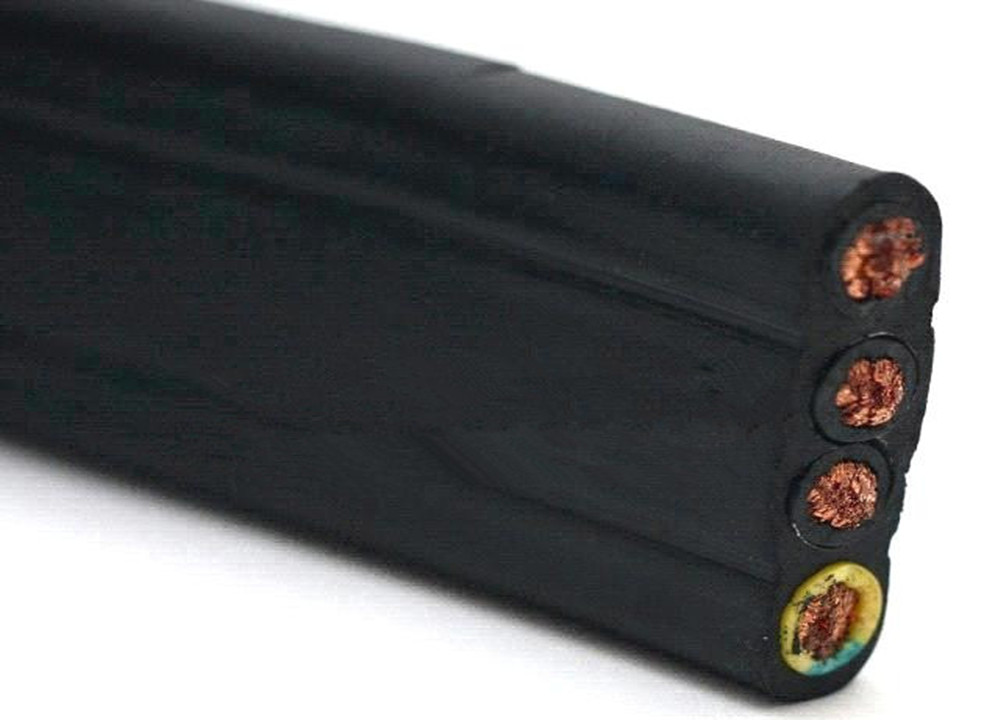

Flat Elevator Cable

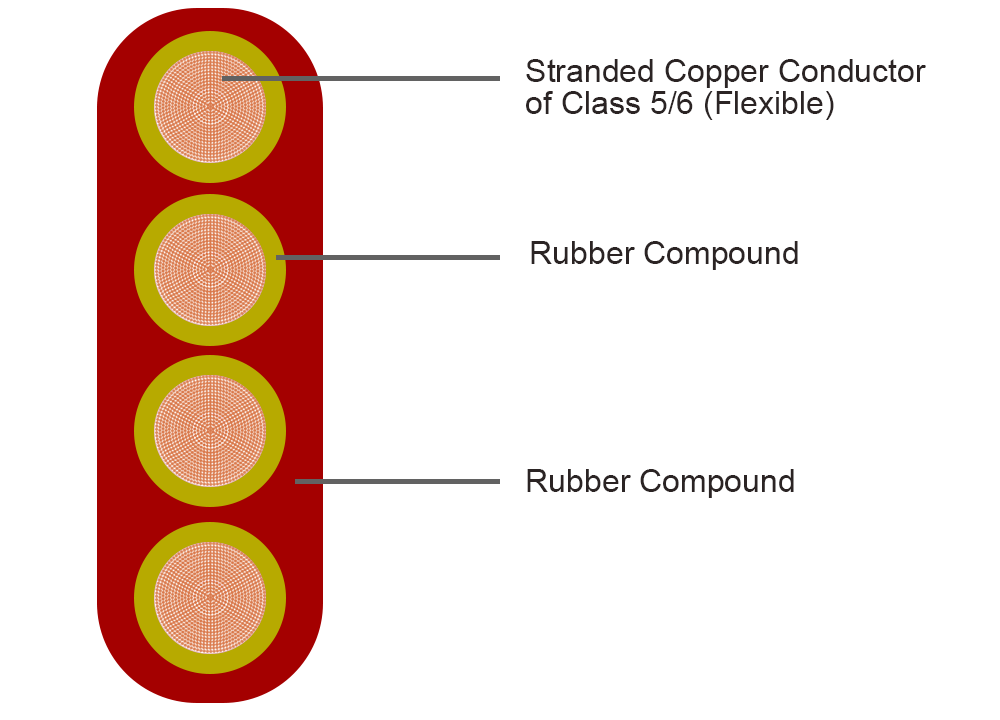

  • Conductor:

    Stranded Copper Conductor of Class 5/6 (Flexible)

  • Insulation:

    Rubber Compound

  • Insulation Color:

    Bed,green,yellow,blue

  • Sheath:

    Rubber Compound

  • Sheath Color:

    Black, red, orange

  • Nominal Voltage:

    300/500V

  • Test Voltage:

    1000 V

Description Flat Elevator Cable
Conductor Stranded Copper Conductor of Class 5/6 (Flexible)
Insulation Rubber Compound
Insulation Color red,green,yellow,blue
Sheath Rubber Compound
Sheath Color Black
Temperature Range 30 - 60℃
Nominal Voltage 300/500V
Test Voltage 2000V
Standard IEC 60332






 Cores x conductor cross-section

 Rated vlotage

Overall dimensions approx.(w x t)

Weight approx.

 copper content

Supply length

n/mm2

V/V mm x mm kg/km kg/km m/m
4G 0,75 300/500 12,6 X 4,2 91 30 500/1000
6G 0,75 300/500 18,4 X 4,2 143 45 500/1000
8G 0,75 300/500 23,2 X 4,2 175 60 500/1000
9G 0,75 300/500 26,6 X 4,2 201 67.5 500/1000
12G 0,75 300/500 33,8 X 4,2 260 90 500/1000
14G 0,75 300/500 39,6 X 4,2 305 105 500/1000
16G 0,75 300/500 44,4 X 4,2 337 120 500/1000
18G 0,75 300/500 49,2 X 4,2 384 135 500/1000
20G 0,75 300/500 55,0 X 4,2 429 150 500/1000
24G 0,75 300/500 65,5 X 4,2 513 180 500/1000
24 X 0,75 300/500 55,2 X 4 416 180 500/1000
40 X 0,75 300/500 57,2 X 9,3 948 309 500/1000
60 X 0,75 300/500 79,9 X 10,4 1457 446 500/1000
7 G 1 300/500 23,2 X 4,3 198 67 500/1000
9 G 1 300/500 27,8 X 4,3 226 86 500/1000
12 G 1 300/500 35,0 X 4,3 295 120 500/1000
18 G 1 300/500 51,0 X 4,3 435 180 500/1000
20 G 1 300/500 57,0 X 4,3 487 200 500/1000
24 G 1 300/500 68,0 X 4,3 583 240 500/1000



 Elevator cable with a special structural design, long service life, to maximize the elevator production enterprises operating efficiency. The elevator control cable provides overall electrical control with long suspension length and mechanical stress. Elevator cable due to the use of wire bearing cable, can be used for long-distance suspension use occasions.
