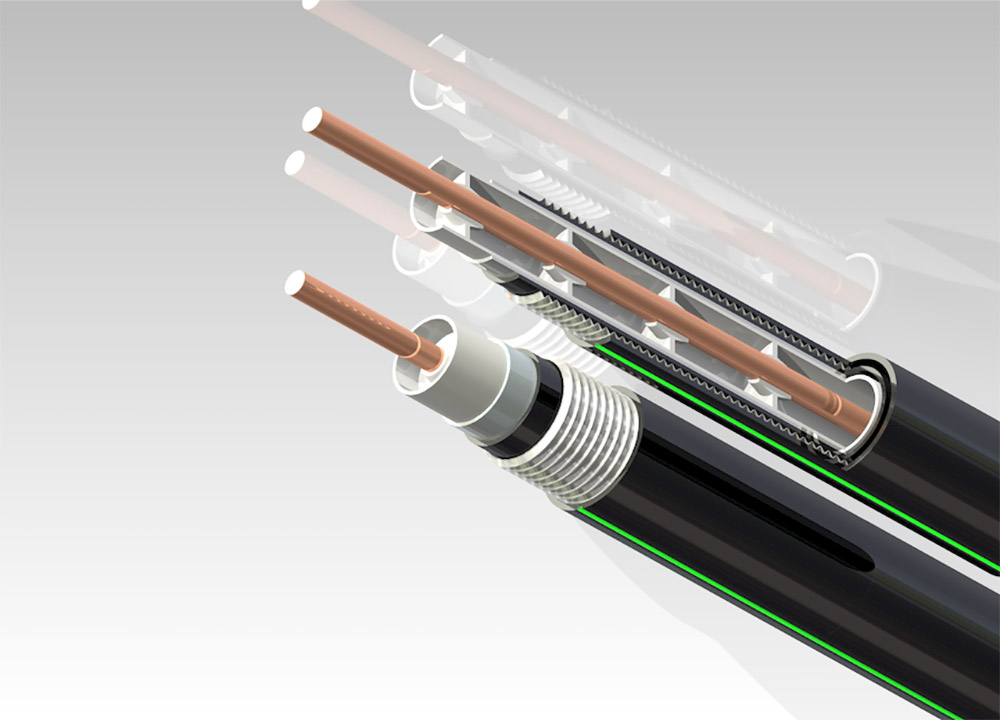

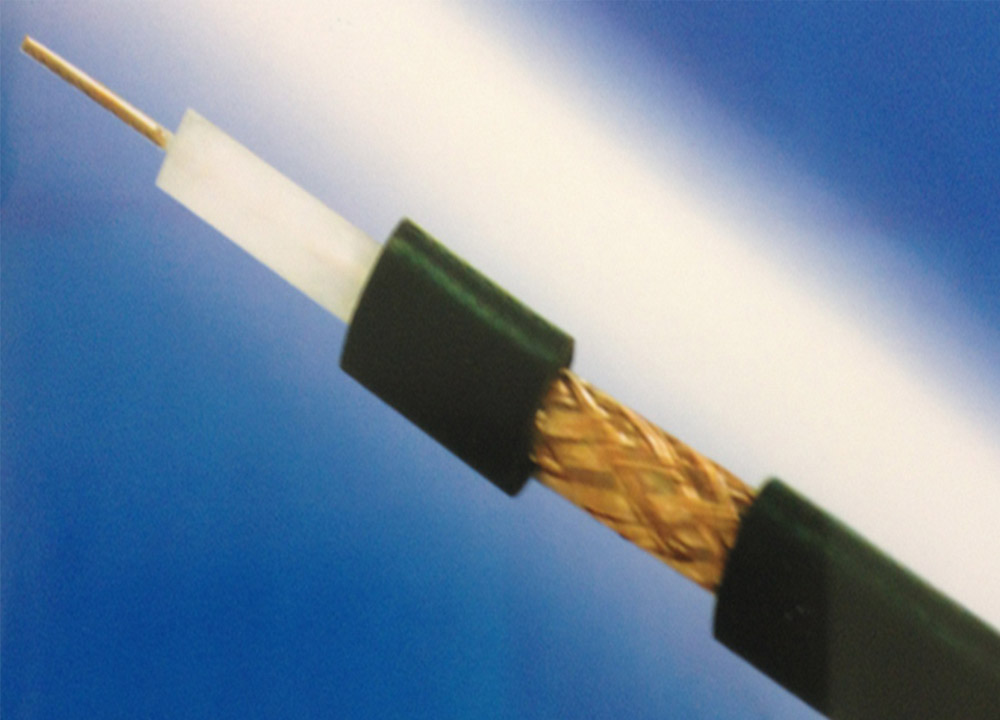

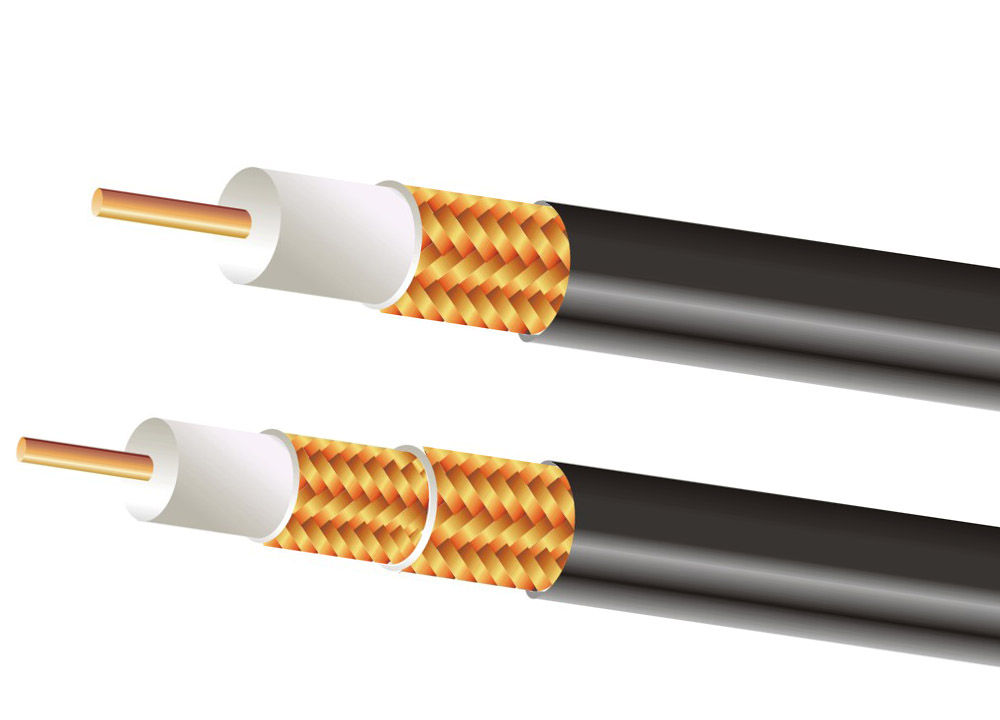

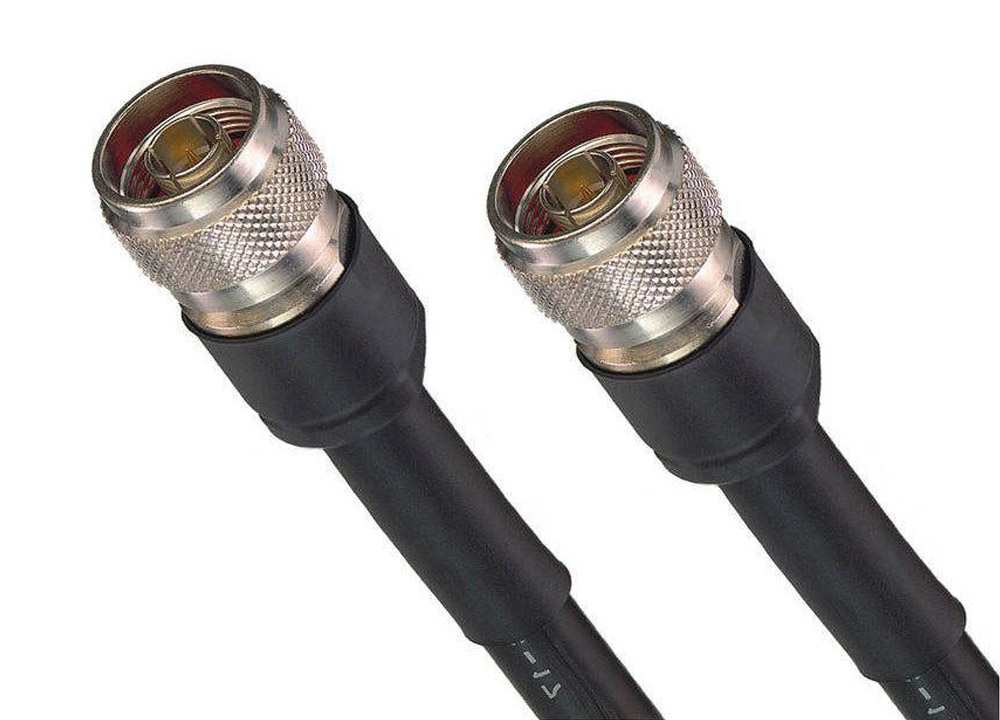

Coaxial cable

product name:
Coaxial cable
Conductor wire core:
08./0.9/1.0copper
sheathing material:
pvc
Packing in meters:
100 metres/Discussible
colour:
White/black/Discussible

Send E-mail chat online

technical parameters：

Not Applicable	RG
outside diameter	6.15mm
conductor material	bare copper
Conductor stranded type	solid
sheathing material	PVC
sheating color	black
Minimum operating temperature	-20°C
maximum operating temperature	+80°C
capacitance	43.3 pF/m
cable configuration	coaxial
Wire core of lay	1/22
insulation	PE
Stranded wire size	22 AWG
The number of stranded wire	1
attenuation	13dB/100ft@1GHz, 8dB/100ft@400MHz
Speed ratio	83%
The impedance characteristics	93 Ω

sizing specifications：

Specifications	conductor		insulation		working out material	jacket		character Impedance Ω	static PF/M	decrement Db/km
Specifications	NO./mm	materials	outside diameter （mm）	material	working out material	external diameter （mm）	material	character Impedance Ω	static PF/M	decrement Db/km
RG174	7/0.16	BC	1/0.40	LDPEF	TC	2.8±0.10	PVC	50	110	259
RG-6/U	1/1.024	CCS	4.57	LDPEF	AL/TC	7.4±0.20	PVC	75	56.8	69
RG-7/U	1/0.914	BC	6.53	LDPE	AL/BC	9.40±0.20	PVC	94.5	41	66
RG-11/U	7/0.404	PVC	7.24	LDPE	AL/BC	10.30±	PVC	75	67.3	76
RG-13/U	7/0.404	TC	7.11	LDPE	AL/BC	10.70±0.20	PVC	74	67.3	76
RG-15/U	1/1.45	BC	9.4	LDPE	AL/BC	13.80±0.21	PVC	76	65.8	49
RG-22/U	7/0.386*2C	BC	7.24	LDPE	AL/BC	10.30±0.20	PVC	95	52.5	118
RG-22B/U	7/0.386*2C	BC	7.24	LDPE	AL/BC	10.70±0.20	PVC	95	52.5	118
RG-29/U	1/0.813	BC	2.95	LDPE	AL/BC	4.70±0.15	PVC	53.5	93.5	138
RG-34/U	7/0.724	BC	11.6	LDPE	AL/BC	15.90±0.25	PVC	71	70.5	46
RG-34B/U	7/0.632	BC	11.7	LDPE	AL/BC	16.00±0.25	PVC	75	67	48
RG-54A/U	7/0.386	BC	4.52	LDPE	AL/BC	6.10±0.15	PVC	58	85.8	187
RG-55/U	1/0.813	BC	2.9	LDPE	AL/BC	5.00±0.15	PVC	53.5	93.6	138
RG-58U	1/0.813	BC	2.95	LDPE	AL/BC	4.95±0.15	PVC	53.5	93.5	138
RG-58A/U	19/0.18	TC	2.95	LDPE	AL/TC	4.95±0.15	PVC	50	93.5	174
RG-59/U	1/0.643	CCS	3.71	LDPE	AL/BC	6.15±0.15	PVC	73	68.9	125
RG-62A/U	1/0.643	CCS	3.71	LDPE	AL/BC	6.15±0.15	PVC	93	44.3	102
RG-62/U	1/0.643	CCS	3.71	LDPE	AL/BC	6.15±0.15	PVC	93	44.3	102
RG-71/U	1/0.643	CCS	3.71	LDPE	BC	6.4±0.15	PE	93	44.3	102
RG-63/U	1/0.643	CCS	7.24	LDPE	BC	10.30±0.20	PVC	125	32.8	66
RG-89/U	1/0.643	CCS	7.24	LDPE	BC	16.00±0.3	PVC	125	32.8	66
RG-108/U	7/0.32*2C	TC	1.84	LDPE	BC	6.2±0.15	PVC	78	74.3	66
RG-122/U	27/0.127	TC	2.44	LDPE	BC	4.06±0.15	PVC	50	105	195
RG-130/U	7/0.724*2C	BC	12	LDPE	BC	15.9±0.15	PVC	95	56	99
RG-133A/U	1/0.645	BC	7.2	LDPE	BC	10.3±0.2	PVC	95	53	76
RG-164/U	1/2.65	BC	17.3	LDPE	BC	22.1±0.35	PVC	75	67	30

The coaxial cable can be divided into baseband coaxial cable and broadband coaxial cable (namely network coaxial cable and video coaxial cable).Coaxial cable Ω baseband cable and 50 75 Ω broadband cable.The baseband cable is divided into thin coaxial cable and thick coaxial cable.Baseband cable is only used for digital transmission, and the data rate can reach 10Mbps.
