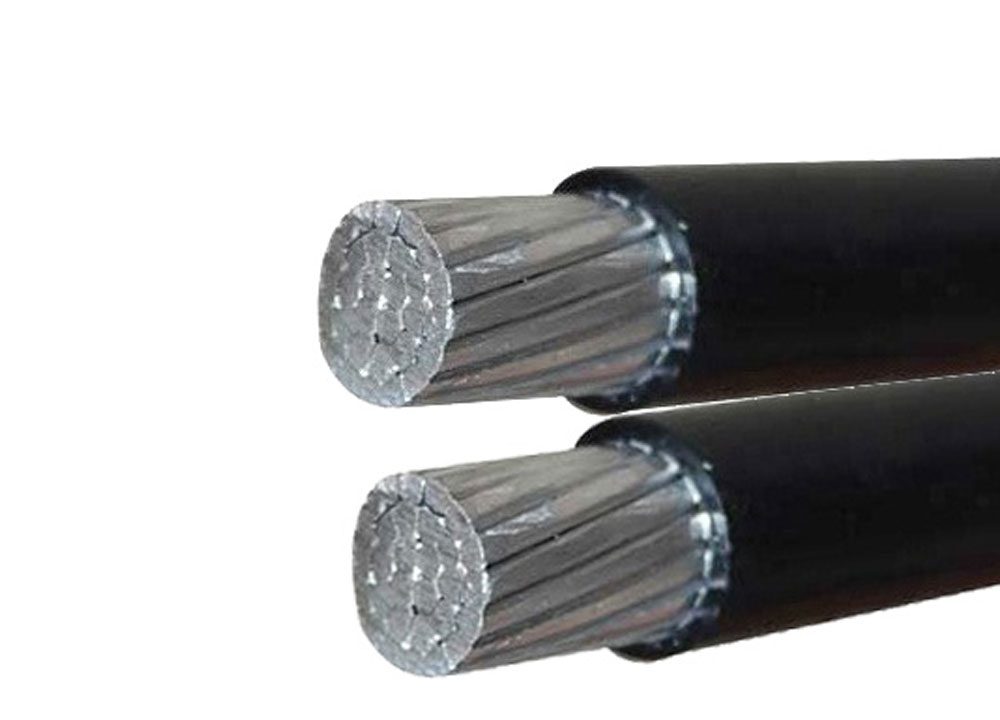

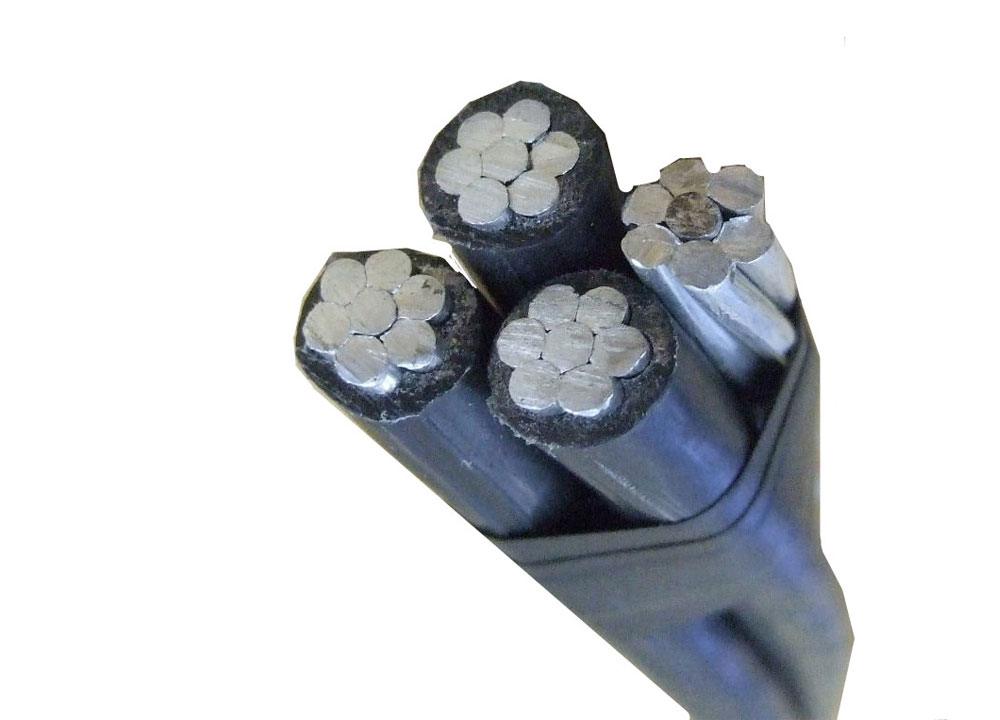

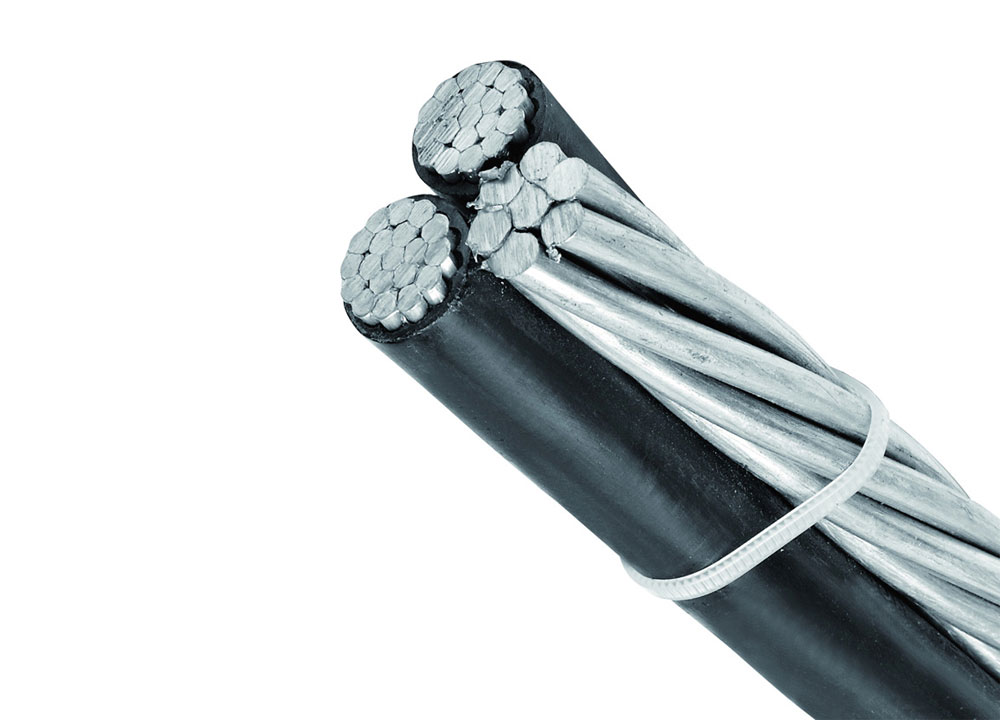

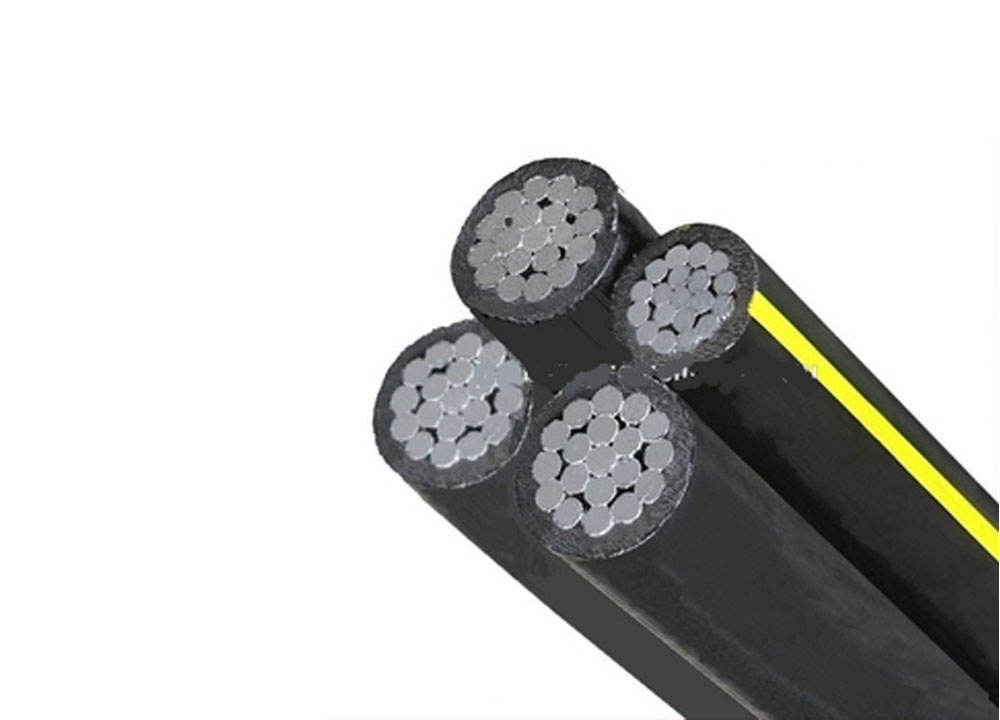

Aerial Bundled Cable(ABC cable)

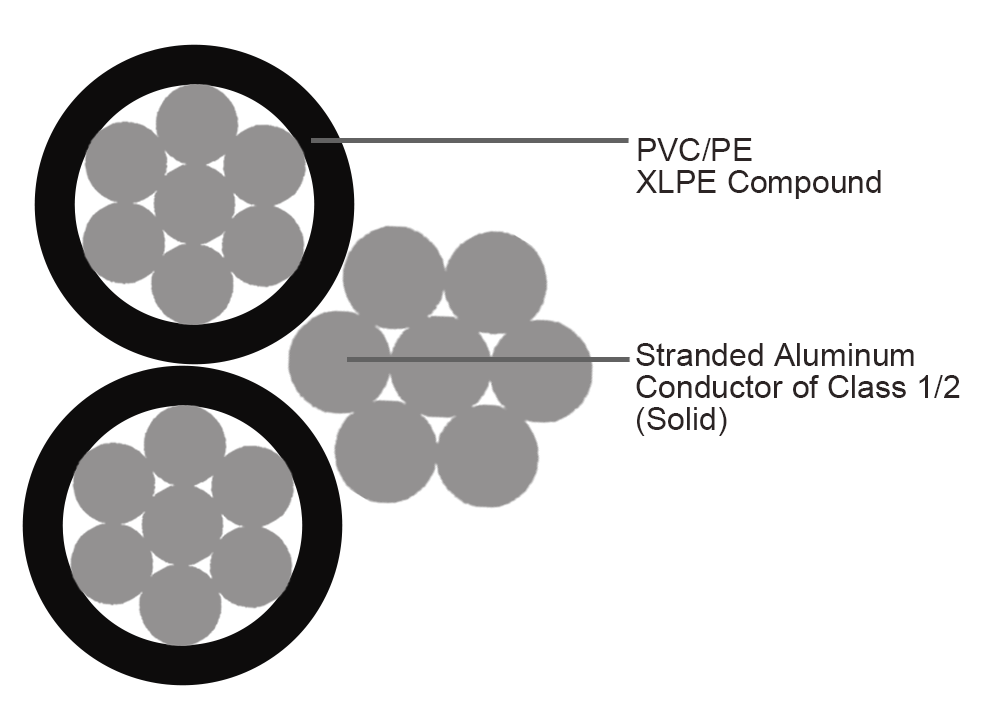

  • Conductor:

    Aerial Bundled Cable(ABC) Stranded Aluminum Conductor of Class 1/2 (Solid)

  • Insulation:

    PVC/PE/XLPE Compound

  • Insulation Color:

    Black

  • Temperature Range:

    -30 - 70℃

  • Nominal Voltage:

    600/1000V

  • Test Voltage:

    3500 V

  • Standard:

    IEC 60552

ABC cable Description
description Air bundle cable (ABC cable)
conductor: 1/2 (solid) stranded aluminum wire
insulation: PVC / PE / XLPE compound
Insulation color black
temperature range: -30 - 70℃
Q: 600 / 1000V
Test voltage: 3500 V
Minimum bending radius: 12D
standard IEC 60552
ABC cable Technical data
Nominal cross-sectional area  Conductor structure Insulation Materials Insulation thickness  approximately. Total diameter  approximately.
weight
Stage
(compressed AL)
Neutral
(naked ACSR)
(square millimeters) (No./mm) Aluminum (No./mm) Steel (No./mm) (mm) (mm) (kg/km)
1 16 + 16 7 / 1.72 6 / 1.72 1 / 1.72 PVC / PE / XLPE  1.2 12.5 121.9
1x25 + 25 7 / 2.15 6 / 2.15 1 / 2.15 PVC / PE / XLPE 1.2 14.9 182.2
1x35 + 35 7 / 2.54 6 / 2.54 1 / 2.54 PVC / PE / XLPE 1.4 17.5 254.7
1x70 + 70 19 / 2.15 12 / 2.15 7 / 2.15 PVC / PE / XLPE 1.4 23.6 382.2
1x95 + 95 19 / 2.54 12 / 2.54 7 / 2.54 PVC / PE / XLPE 1.6 27.6 528.2
2×16 + 16 7 / 1.72 6 / 1.72 1 / 1.72 PVC / PE / XLPE 1.2 14.2 187.6
2×25 + 25 7 / 2.15 6 / 2.15 1 / 2.15 PVC / PE / XLPE 1.2 16.7 273.8
2x35 + 35 7 / 2.54 6 / 2.54 1 / 2.54 PVC / PE / XLPE 1.4 19.7 386.9
2x70 + 70 19 / 2.15 12 / 2.15 7 / 2.15 PVC / PE / XLPE  1.4 26.1 617.2
2x95 + 95 19 / 2.54 12 / 2.54 7 / 2.54 PVC / PE / XLPE  1.6 30.5 850.9
3x70 + 70 19 / 2.15 12 / 2.15 7 / 2.15 PVC / PE / XLPE  1.4 29.7 1024.3
3x95 + 95 19 / 2.54 12 / 2.54 7 / 2.54 PVC / PE / XLPE 1.6 34.6

specification Conductor structure insulation Insulation
thickness
Approximate diameter Approximate weight
Phase
(AL)
Neutral
(AL)
mm2 No./mm No./mm (mm) (mm) (kg/km)
1*10+1*10 7/1.35 7/1.35 PVC/PE/XLPE  1 10.1 71.5
1*16+1*16 7/1.72 7/1.72 PVC/PE/XLPE 1.2 12.5 110.1
1*25+1*25 7/2.15 7/2.15 PVC/PE/XLPE 1.2 14.9 163.9
1*35+1*35 7/2.54 7/2.54 PVC/PE/XLPE 1.4 17.5 229
1*50+1*50 7/2.92 7/2.92 PVC/PE/XLPE 1.4 20.1 300
1*70+1*70 19/2.15 19/2.15 PVC/PE/XLPE 1.4 23.6 423.2
1*95+1*95 19/2.54 19/2.54 PVC/PE/XLPE 1.6 27.6 585.4
2*16+1*16 7/1.72 7/1.72 PVC/PE/XLPE 1.2 14.2 175.8
2*25+1*25 7/2.15 7/2.15 PVC/PE/XLPE  1.2 16.7 258.4
2*35+1*35 7/2.54 7/2.54 PVC/PE/XLPE  1.4 19.7 361.2
2*50+1*50 7/2.92 7/2.92 PVC/PE/XLPE  1.4 22.5 472.1
2*70+1*70 19/2.15 19/2.15 PVC/PE/XLPE  1.4 26.1 658.3
2*95+1*95 19/2.54 19/2.54 PVC/PE/XLPE 1.6 30.5 908.2
3*16+1*16 7/1.72 7/1.72 PVC/PE/XLPE 1.2 16.3 241.5
3*25+1*25 7/2.15 7/2.15 PVC/PE/XLPE 1.2 19.1 353.6
3*35+1*35 7/2.54 7/2.54 PVC/PE/XLPE 1.4 22.5 493.5
3*50+1*50 7/2.92 7/2.92 PVC/PE/XLPE 1.4 25.7 644.1
3*70+1*70 19/2.15 19/2.15 PVC/PE/XLPE 1.4 29.7 895.2
3*95+1*95 19/2.54 19/2.54 PVC/PE/XLPE 1.6 34.6 1233
Application
 Aerial Bundled Cable(ABC cable) The cable as a new-type aerial cable is used for transmitting electric power overhead, extensively used in rebuilding of an urban. Primarily used for overhead service applications such as street lighting,outdoor lighting, and temporary service for construction.
