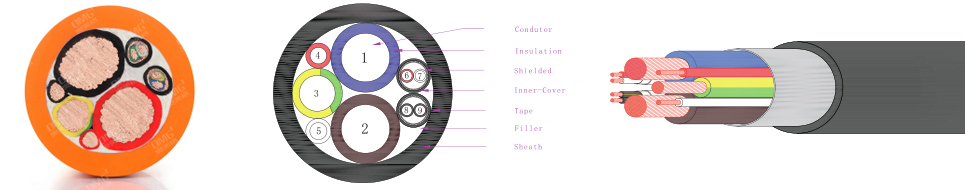

EV Charging Cable

Conductor:
Pure Copper
Insulation:
TPE
Screen:
AL Foil+Tinned Copper/Pure copper
Filling:
PP or cotton yarn
Tape:
Non-woven fabric
Jacket:
TPE

Send E-mail chat online

The main standards for electric vehicle charging cables are: IEC62893, EN50620 (IEC62893-3 is equivalent to EN50620), UL2263, JCS4522, PSE, GB/T 33594, CQC1103-1105, DEKRA K175, TUV 2PFG 1908

EC standard	IEC 62893-1/2/3:2017
European standard	EN 50620:2017(less than 35mm2)
Chinese standard	GB/T 33594-2017
US/Canadian Standard	UL2263
Japanese standard	JCS 4522、PSE

The products are flexible with a bending radius less than 5D, surviving from high and low temperature, providing oil resistance, acid and alkali resistance, water resistance, abrasion resistance, crack resistance, UV resistance, good flame retardancy, good electrical conductivity, and insignificant conductor temperature rise. All materials comply with RoHS2.0 environmental protection standards.

Construction	Features
1.Conductor	Rated temperature ：-40℃～90℃
Material: Bare Copper	Rated Voltage ： AC 300/500V、 450/750V；DC 1000V
2.Insulation	Flame Test ：VW-1 Test method Comply with UL 2556
Material: TPE	Min： Bending Radius: ≥6*OD
Color： Brown，Blue，Yellow/Green	Dielectric Voltage： 2.5kVac/15min. No Breakdown
3.Filler	Low temperature impact ：-40℃, No cracks
Material: PP Cord	Hot Shock：150℃/1h No cracks
4.Tape	Oil Resistance ：IRM902,IRM903,Gasoline 20h OD Variation≤15% No Cracks
Material:Non-woven fabrics	Crush resistance：Sq≤4, crush force≥4KN ; 4≤Sq≤35, crush force≥11KN;
5.Sheath	Resistance to Acid and alkali：168h, Tensile Strength Variation ≤30%; Elongation≥100%
Material: TPE	Environmental Requirements：Compliant with RoHS and REACH
Color: Black （customizable）

Product number	specification （The signal line is designed according to the needs of use）	Conductor twisted outer diameter	Conductor resistance	Reference allowable current	Unshielded	Cable packaging
Product number		Conductor twisted outer diameter	Conductor resistance	Reference allowable current	Complete outer diameter	Cable packaging
H05BZ-F	3×1.5mm2+(0～2)×(0.5～0.75)mm2	1.6	13.3	14A	8.6~9.6	800m/700#
H05BZ-F	3×2.5mm2+(0～2)×(0.5～0.75)mm2	2.1	7.98	25A	9.8~10.8	800m/700#
H07BZ-F	3×1.5mm2+(0～2)×(0.5～0.75)mm2	1.6	13.3	14A	8.8~9.6	800m/700#
	3×2.5mm2+(0～2)×(0.5～0.75)mm2	2.1	7.98	25A	10~10.8	800m/700#
	3×4.0mm2+(0～2)×(0.5～0.75)mm2	2.8	4.95	35A	11.5	500m/700#
	3×6.0mm2+(0～2)×(0.5～0.75)mm2	3.5	3.3	44A	13.2	400m/800#
	3×10.0mm2+(0～2)×(0.5～0.75)mm2	4.5	1.91	62A	16.3	500m/950#
	3×16mm2+(0～2)×(0.5～0.75)mm2	5.7	1.21	82A	19	500m/700#
	5×2.5mm2+(0～2)×(0.5～0.75)mm2	2.1	7.98	20A	13.5	500m/950#
	5×4.0mm2+(0～2)×(0.5～0.75)mm2	2.8	4.95	30A	15	400m/950#
	5×6.0mm2+(0～2)×(0.5～0.75)mm2	3.5	3.3	38A	16.8	300m/950#
	5×10.0mm2+(0～2)×(0.5～0.75)mm2	4.5	1.91	54A	20	300m/1200#
	5×16mm2+(0～2)×(0.5～0.75)mm2	5.7	1.21	71A	23.5	800m/700#
	5×25mm2+(0～2)×(0.5～0.75)mm2	7.2	0.78	94A	29	800m/700#
	5×35mm2+(0～2)×(0.5～0.75)mm2	8.4	0.554	117A	32.8	500m/700#

Product number	Specification	Conductor twisted outer diameter	Conductor resistance	Reference allowable current	Unshielded Complete outer diameter
62893 I EC 126	2×10+10+P(2×0.75)+4×0.5	4.5	1.91	40A	15.5	3
	2×16+16+P(2×0.75)+4×0.5	5.7	1.21	63A	18	3
	2×25+16+P(2×0.75)+4×0.5	7.1	0.78	100A	24.5	3
	2×35+16+P(2×0.75)+4×0.5	8.4	0.554	125A	25.8	3
	2×50+25+P(2×0.75)+4×0.5	10.2	0.386	150A/200A	30.2
	2×70+35+P(2×0.75)+4×0.5	12	0.272	200A/250A	34.7
Soecifications: 2-core power cable 4mm to 95mm. 1-core PE cable 4mm to 50mm. 2-core auxliary power cable 2.5 mm to 6.0mm (optional) 0-12 core signal cable 0.5mm to 1.mm can be added, the signal cable can be shielded or the maincable can be shielded. Specific product parameters shall be subject to the technical drawings..
