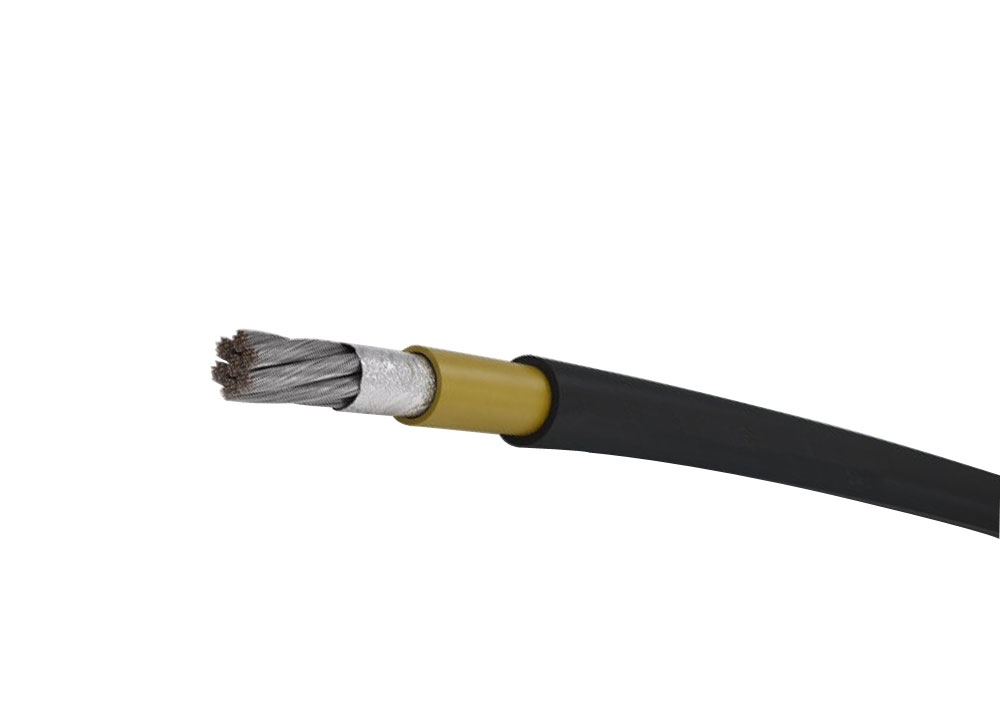

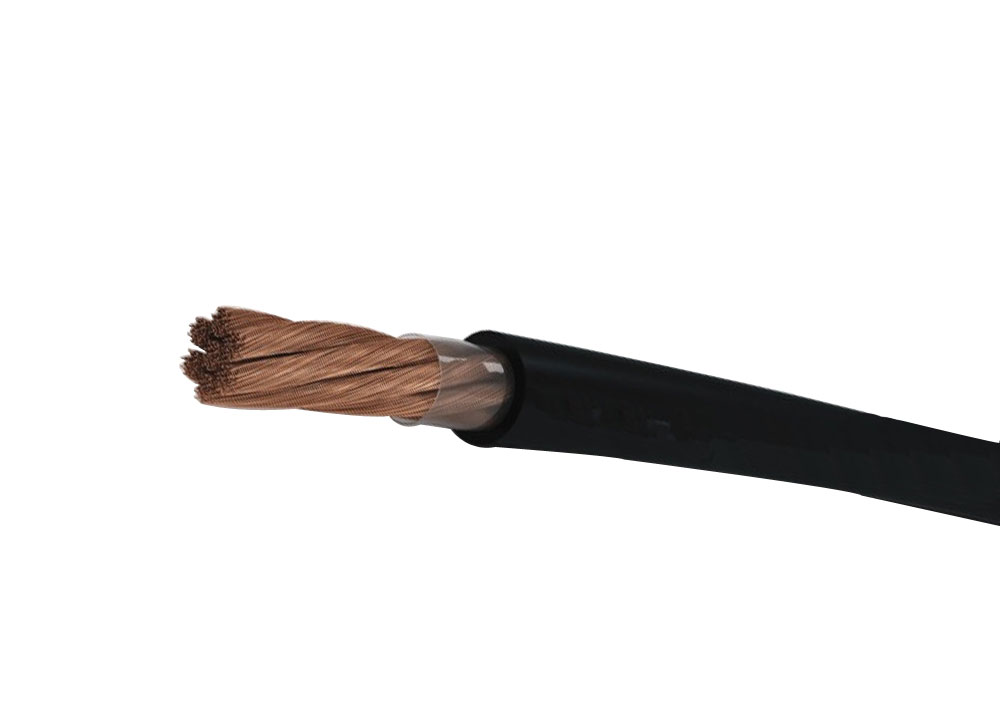

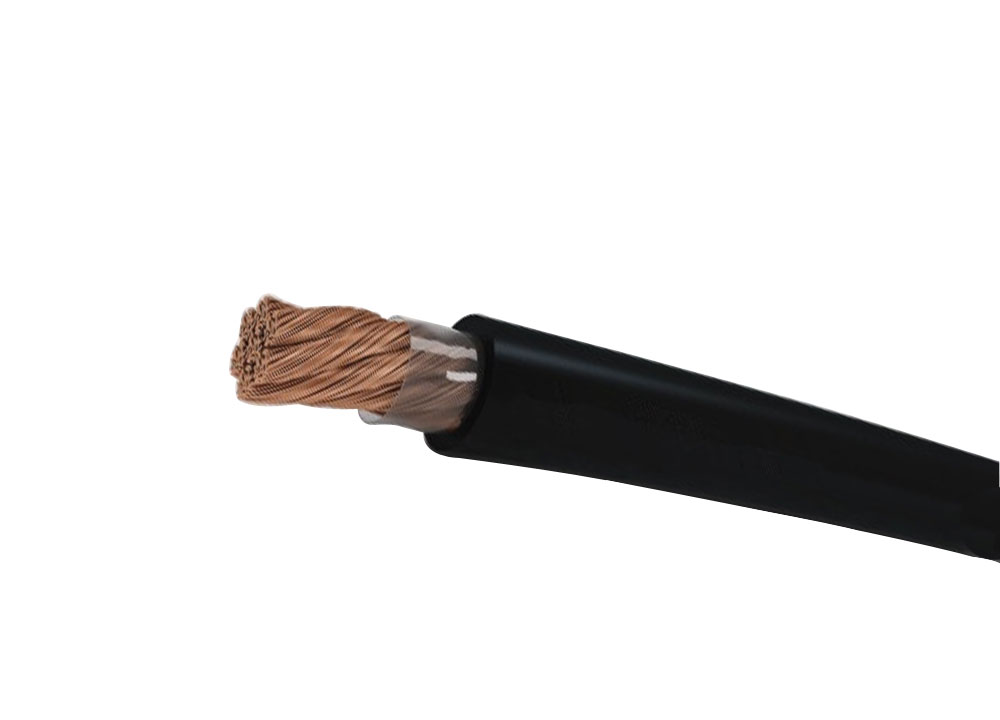

Welding Cable

Conductor:

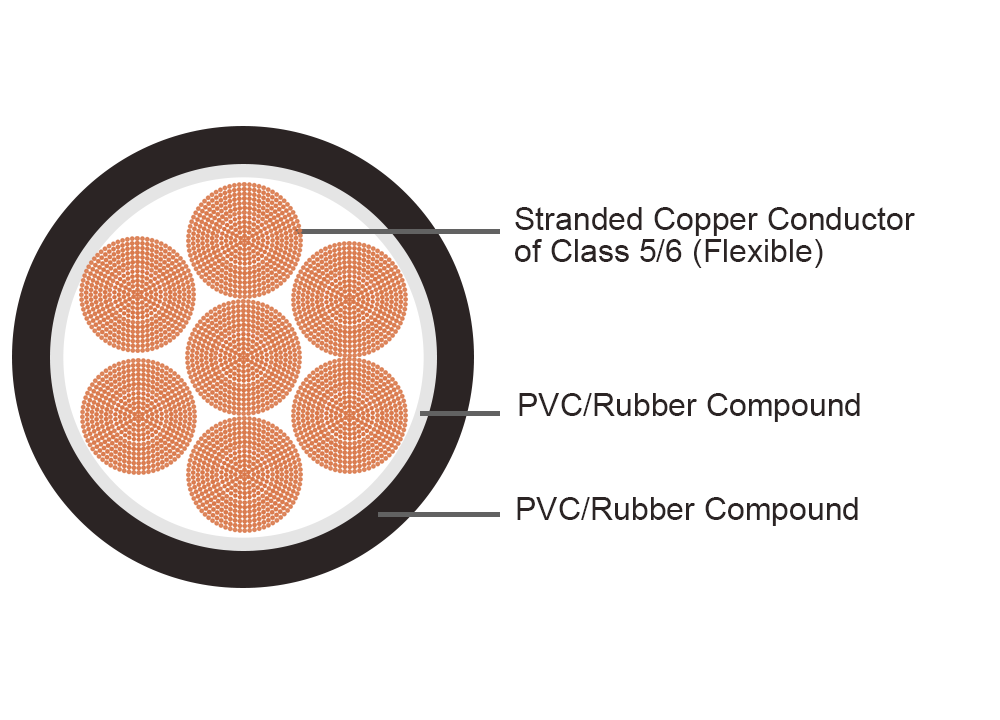

Stranded Copper Conductor of Class 5/6 (Flexible)
Inner Insulation:
PVC/Rubber Compound
Inner Insulation Color:
White
Outer Insulation:
PVC/Rubber Compound
Outer Insulation Color:
Black, Orange
Nominal Voltage:
300/500V
Test Voltage:
1000 V

Send E-mail chat online

description

description	Welding cable
conductor:	5/6 grade multi-strand copper wire (flexible)
Internal insulation:	PVC / rubber compound
Inner insulation color	white
External insulation	PVC / rubber compound
Outer insulation color	Black, orange
temperature range:	-20 - 80℃
Q:	300 / 500V
Test voltage:	1000 V
Minimum bending radius:	4D
standard	IEC 60332

Technical data

section	Stock / DIA	Insulation thickness	FROM	Conductor resistance at 20 ° C	reference weight
(square millimeters)	（n / mm）	(mm)	(mm)	(Ω/km)	(kg/km)
10	322 / 0.2	0.8	7.5-9.7	1.91	146
16	513 / 0.2	2	9.2-11.5	1.16	218.9
25	798 / 0.2	2	10.5-13.0	0.758	316.6
35	1121 / 0.2	2	11.5-14.5	0.538	426
50	1596 / 0.2	2.2	13.5-17.0	0.379	592.47
70	2214 / 0.2	2.4	15.0-19.5	0.268	790
95	2997 / 0.2	2.6	17.0-22.0	0.198	1066.17
120	1702 / 0.3	2.8	19.0-24.0	0.161	1348.25
150	2135 / 0.3	3	21.0-27.0	0.129	1678.5
185	1443 / 0.4	3.2	22.0-29.0	0.106	1983.8

application

Cable of normal flexibility grade, used as high voltage insulated conductor from electrical welding machine to electrodes, i.e. as earth connection. In addition to hand welding, it can be also applied in automobile industry, shipbuilding, transport systems, production lines, tool manufacturing, welding robots. These cables retain their high flexibility also under the influence of ozone, light, oxygen, protective gases, oils and gasoline. Due to their robust construction, they are also resistant to cold, same as to heat and fire. Suitable for outdoor use, but also in dry and damp conditions.
