Stranded Copper Conductor of Class 5/6 (Flexible)
PVC Compound
Red, Brown, White or double color
-30 - 70℃
300/500V
2500 V
IEC 60552

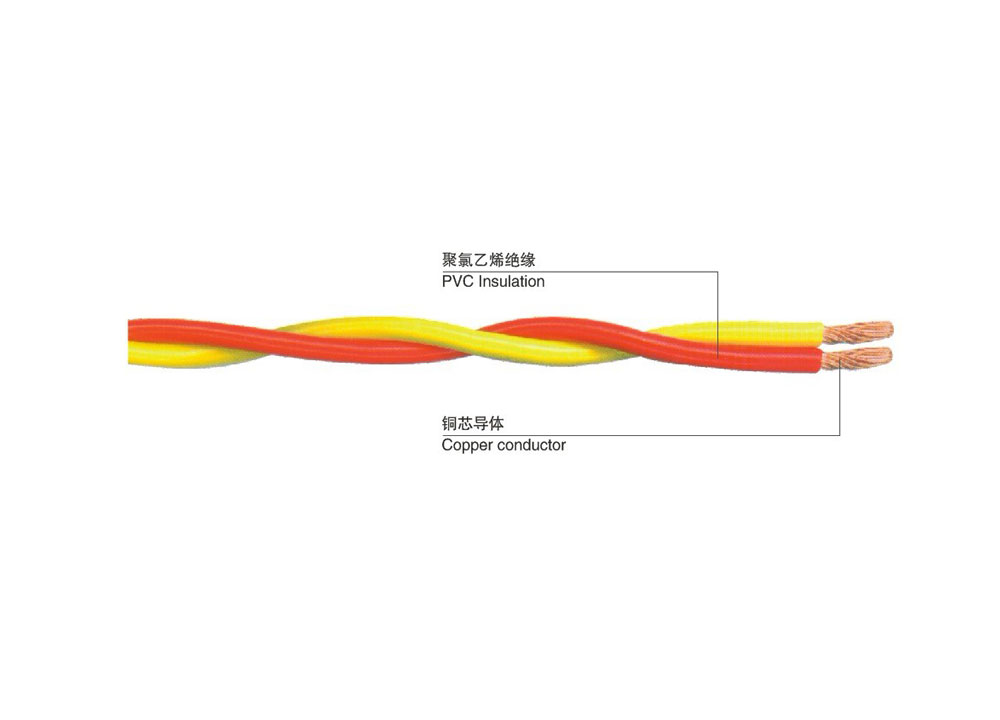

| Description | Twisted Flexible Wire |
| Conductor: | Stranded Copper Conductor of Class 5/6 (Flexible) |
| Insulation: | PVC Compound |
| Conductor Color | Red, Brown, White or double color |
| Temperature Range: | -30 - 70℃ |
| Nominal Voltage: | 300/500V |
| Test Voltage: | 2500 V |
| Standard | IEC 60552 |
| Cores x conductor cross-section | Conductor construction | Insulation thickness | Conductor resistance at 20 °C | Insulation resistance at 70 °C | Cu weight | Cable weight |
| nominal | nominal | max. | min. | Approx | ||
| mm² | n x mm | mm | Ω/km | MΩ/km | kg/km | kg/km |
| 2 x 0,5 | 28 x 0,15 | 0.6 | 39,0 | 0,013 | 9,6 | 20 |
| 2 x 0,75 | 42 x 0,15 | 0.7 | 26,0 | 0,011 | 14,4 | 24 |
| 2*1 | 57/0.15 | 0.8 | 19.5 | 0,010 | 19.2 | 28 |
| 2*1.5 | 85/0.15 | 0.8 | 13.3 | 0.010 | 28.8 | 40 |
| 2*2.5 | 7/20/0.15 | 0.8 | 7,98 | 0,0095 | 48 | 64 |
| 2*4 | 7/32/0.15 | 0.8 | 4,95 | 0,0078 | 76.8 | 92 |
| 2*6 | 7/48/0.15 | 0.8 | 3,30 | 0,0068 | 115.2 | 130 |
