Description

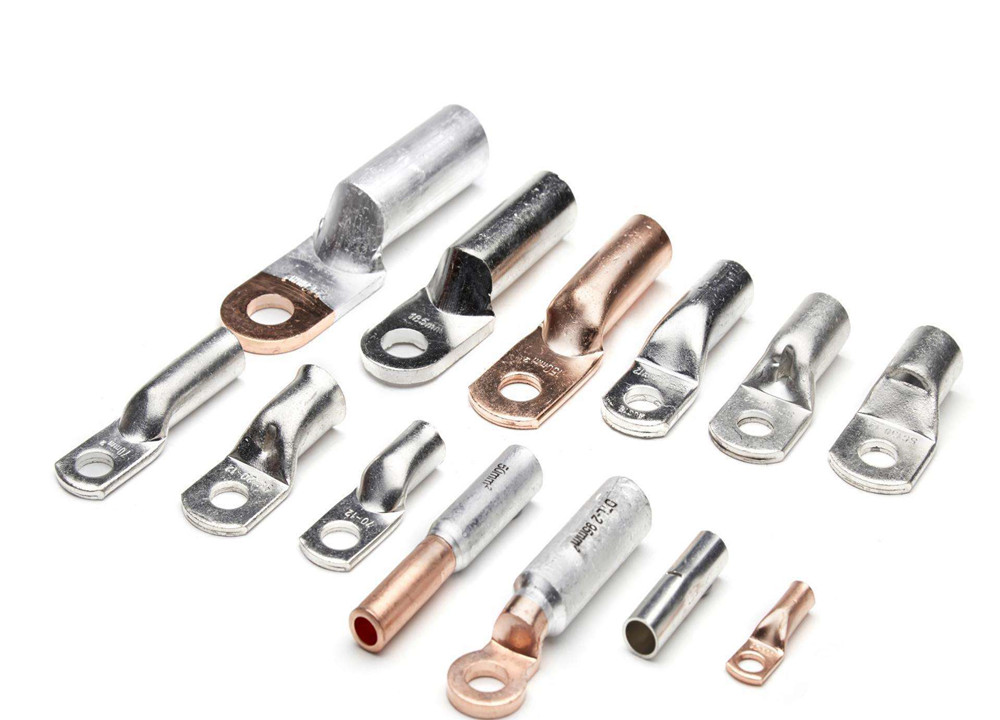

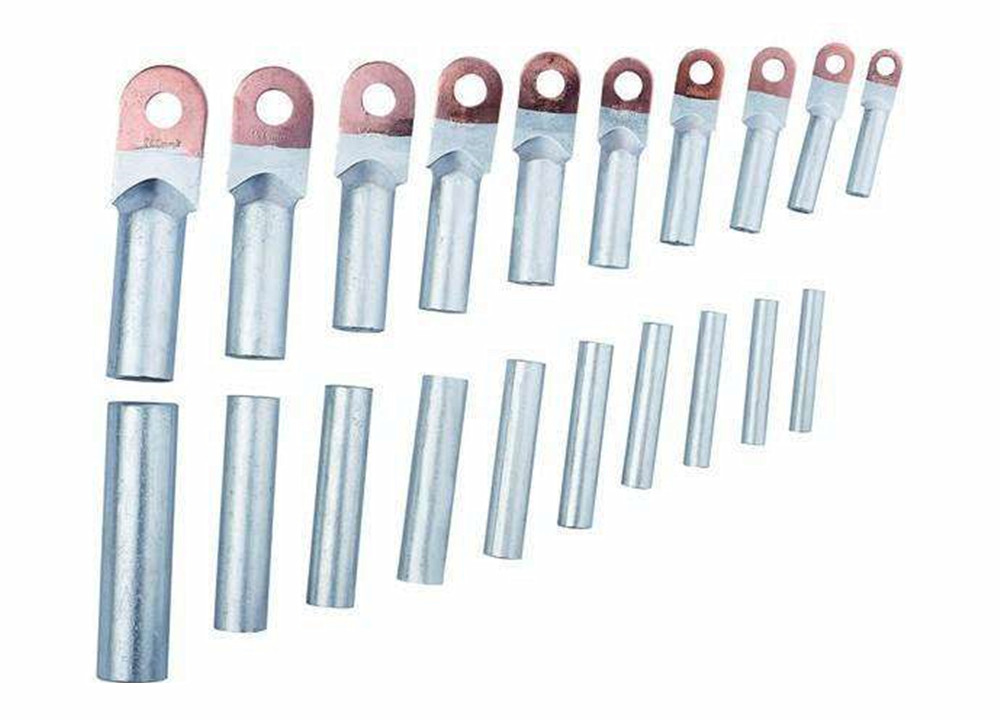

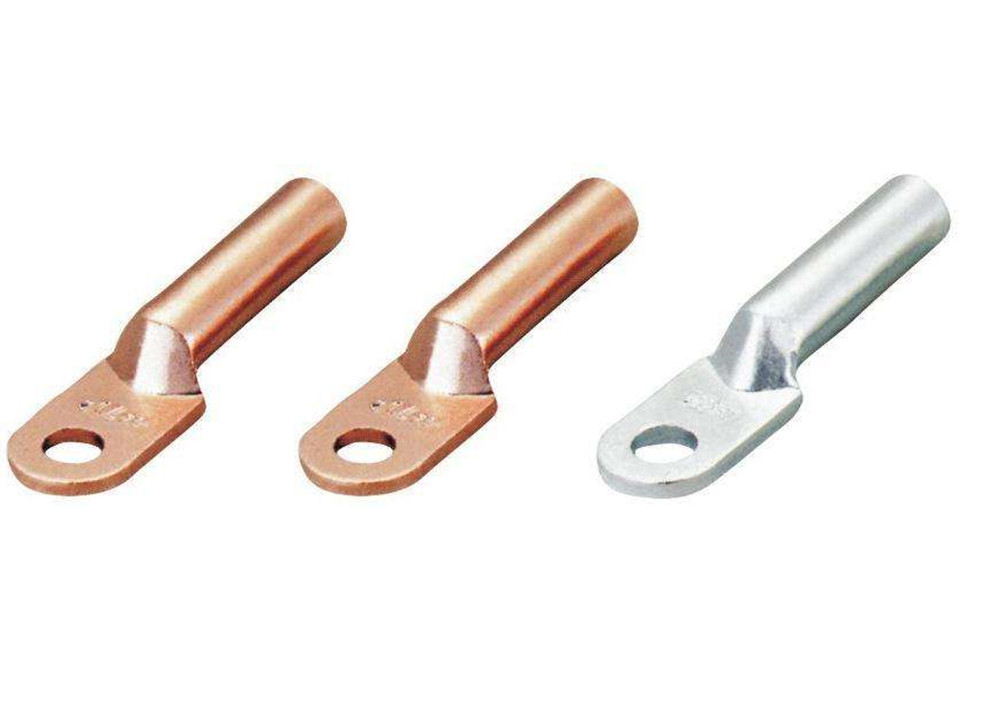

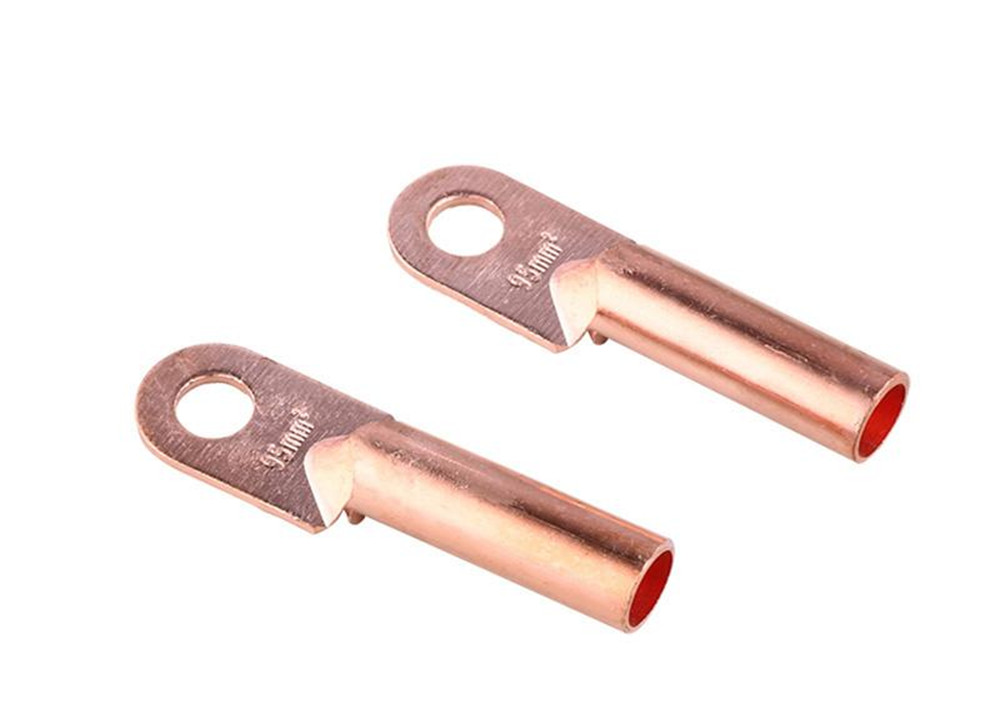

Type	Cable Terminal Lug
Material	Copper/Aluminum
Screw Hole	8.5-21mm
Usage	Connecting Cable

Technical Data

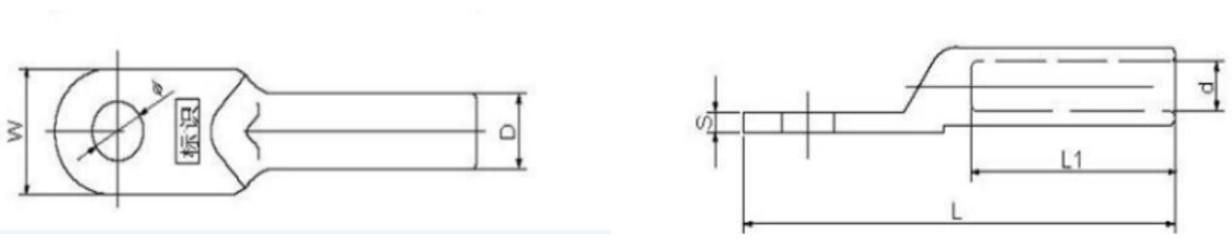

A type	φ(mm)	W(mm)	S(mm)	d(mm)	D(mm)	L1(mm)	L(mm)
DTL-10	8.5	16	2.5	5.2	10	30	64
DTL-16	8.5	16	3	6.2	11	33	70
DTL-25	8.5	18	3.2	7.2	12	36	75
DTL-35	10.5	20.5	3.5	8.5	14	42	85
DTL-50	10.5	23	4	9.7	16	43	90
DTL-70	12.5	26	4.5	11.5	18	50	102
DTL-95	12.5	28	5	13.5	21	53	112
DTL-120	14.5	30	5.2	15.1	23	55	120
DTL-150	14.5	34	5.8	16.5	25	57	126
DTL-185	17	37	6.5	18.5	27	60	133
DTL-240	17	40	7	20.7	30	62	140
DTL-300	21	46	8.5	23.2	34	66	160
DTL-400	21	50	8.7	26.2	38	72	168
DTL-500	21	55	9	29.5	42	75	185
DTL-630	21	60	10.5	34.5	50	82	215

B type	φ(mm)	W(mm)	S(mm)	d(mm)	D(mm)	L1(mm)	L(mm)
DTL-10	8.5	14.5	2	6.5	10	28	64
DTL-16	8.5	14.5	2	6.5	10	28	64
DTL-25	8.5	16	2.2	7.3	11	28	68
DTL-35	10.5	18	2.3	8.5	12	31	74
DTL-50	10.5	20.5	2.6	9.5	14	38	82
DTL-70	12.5	23	3	11.5	16	41	92
DTL-95	12.5	26	3.2	13.8	18	43	98
DTL-120	14.5	28	3.6	15.4	20	46	104
DTL-150	14.5	30	4	16.8	22	47	113
DTL-185	17	33	4	18.8	24	52	120
DTL-240	17	35	4.7	20.5	28	57	130
DTL-300	21	42	5.5	23.5	32	61	148

Application

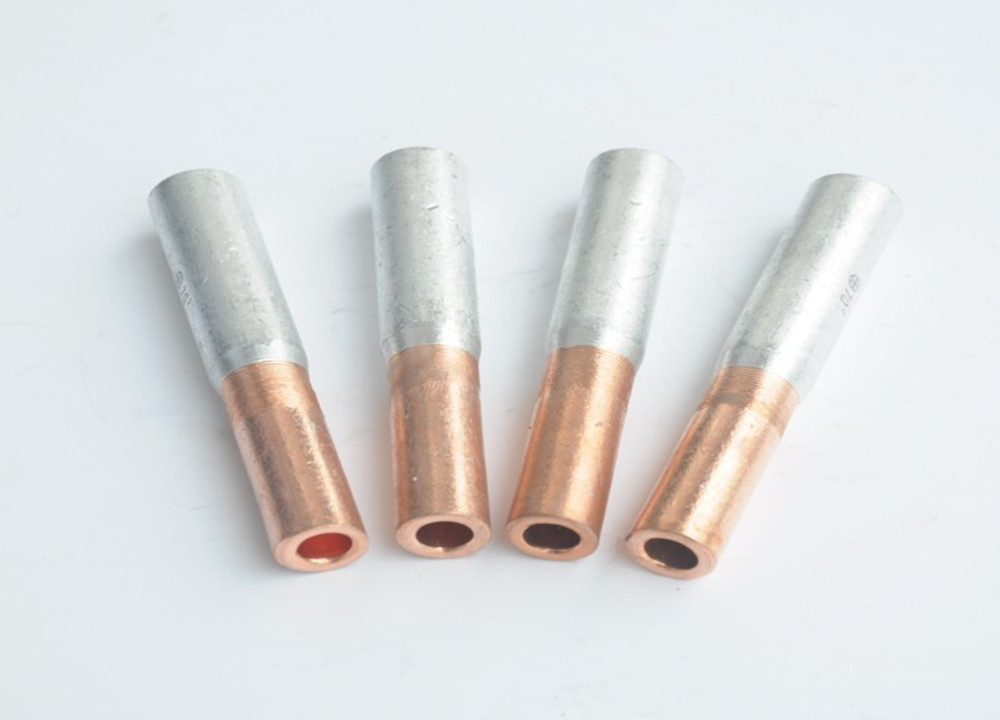

(1) DLT series of copper-aluminum terminal are suitable for transition connection of the circular aluminum wires, hcmicycle sector aluminum wired, power supply cables in the distribution equipment and copper terminals of electrical equipment

(2) The technoogy of friction welding is wonderfully adopted. therefore they have distinguished features of strong weld indensity. good nature in electrication, resistant galvanic corrosion and long service life
