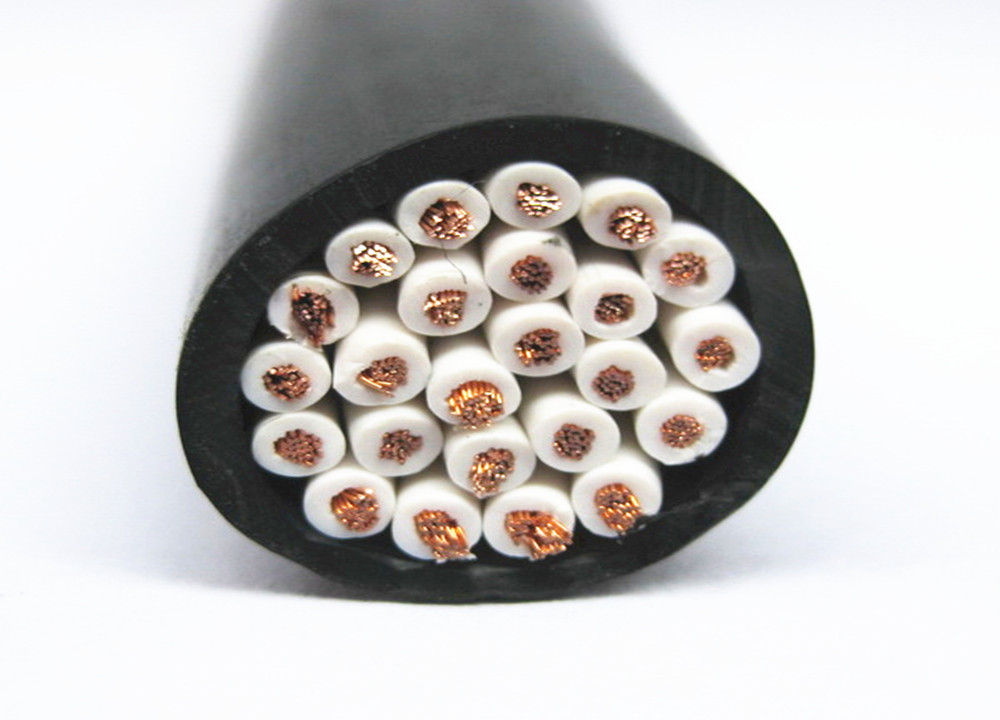

SOCAPEX CABLE

Conductor:
Pure Copper-Class 5
Insulation:
PVC
Jacket:
PVC
Rated Voltage:
300/500v

Send E-mail chat online

APPLICATIONS OVERVIEW

Our highly flexible multicore Socapex cable is widely used in the connection of lighting technology and dimmer racks in events of all types around the world. This range is suitable for use in dry and damp environment. With its PVC sheathing, it is also designed to withstand moderate mechanical stress and UV exposure when used outdoors.
Socapex cables can be used in free and fixed applications with a voltage rating of 300/500V.

SOCAPEX CABLE CONSTRUCTION

Part Number	Number of Cores	Nominal Cross- Sectional Area	Maximum Overall Diameter mm
A5Y19015	19	1.5mm2	18.2
A5Y19025	19	2.5mm2	21.62

SOCAPEX CABLE DIMENSIONS

Conductor

Flexible copper (Class 5)

Insulation

Polyvinyl chloride (PVC) Type TI1

Outer Sheath

Polyvinyl Chloride (PVC) Type TM2
