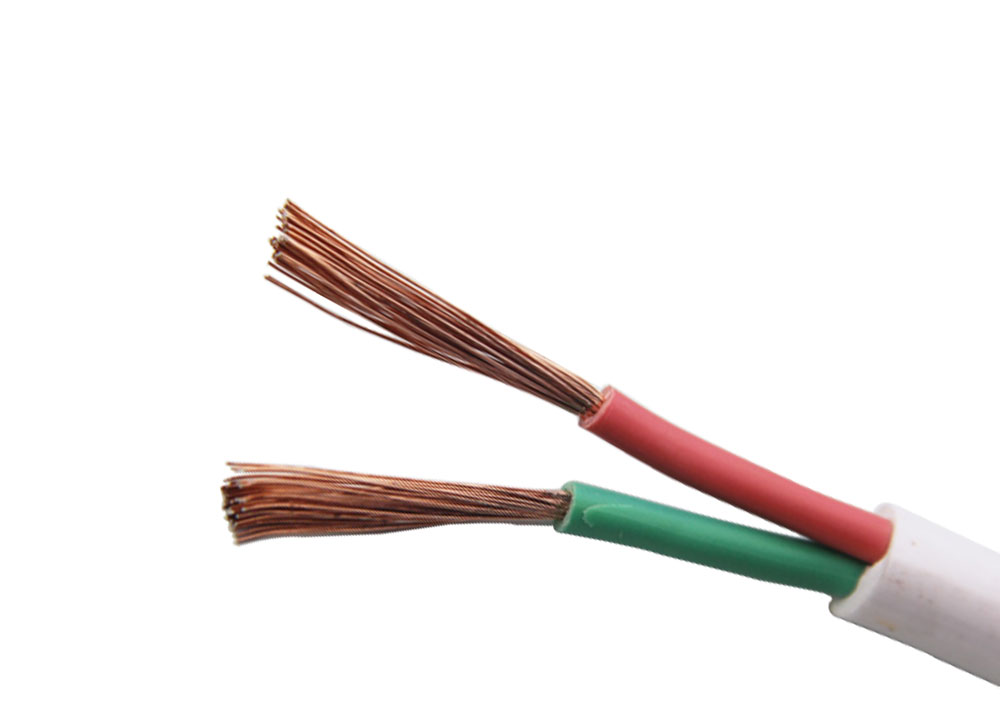

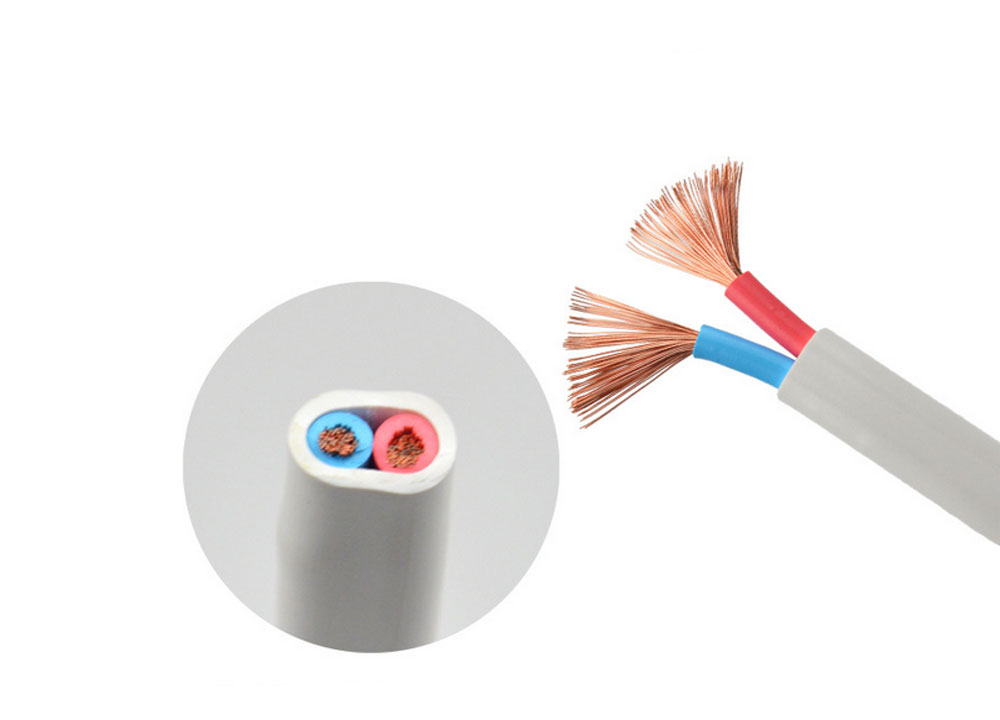

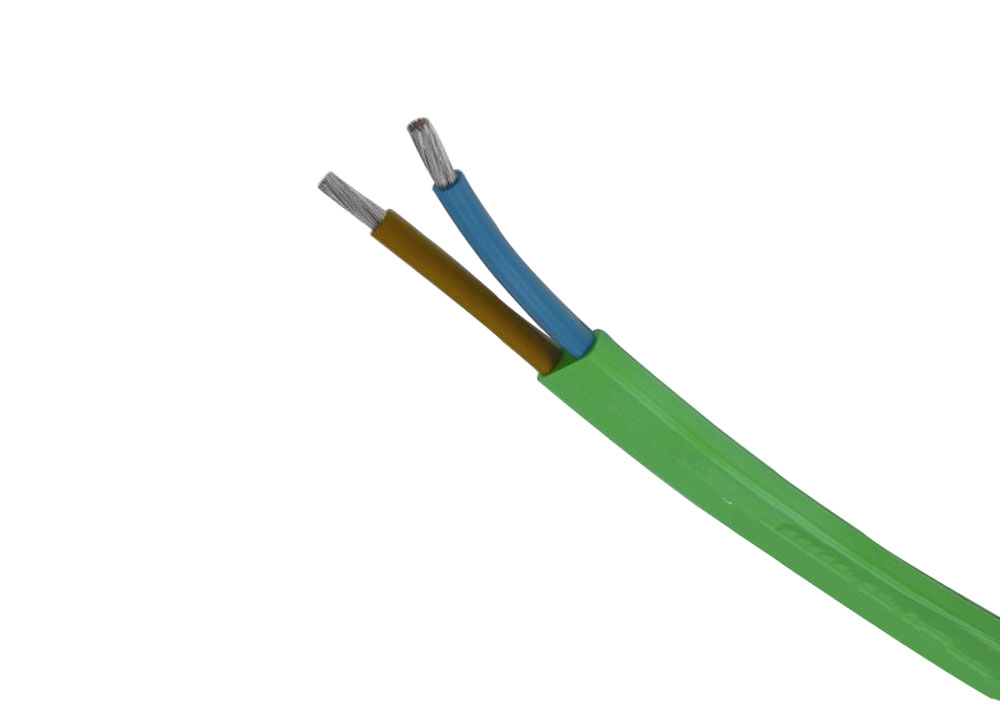

Flexible Flat Cable

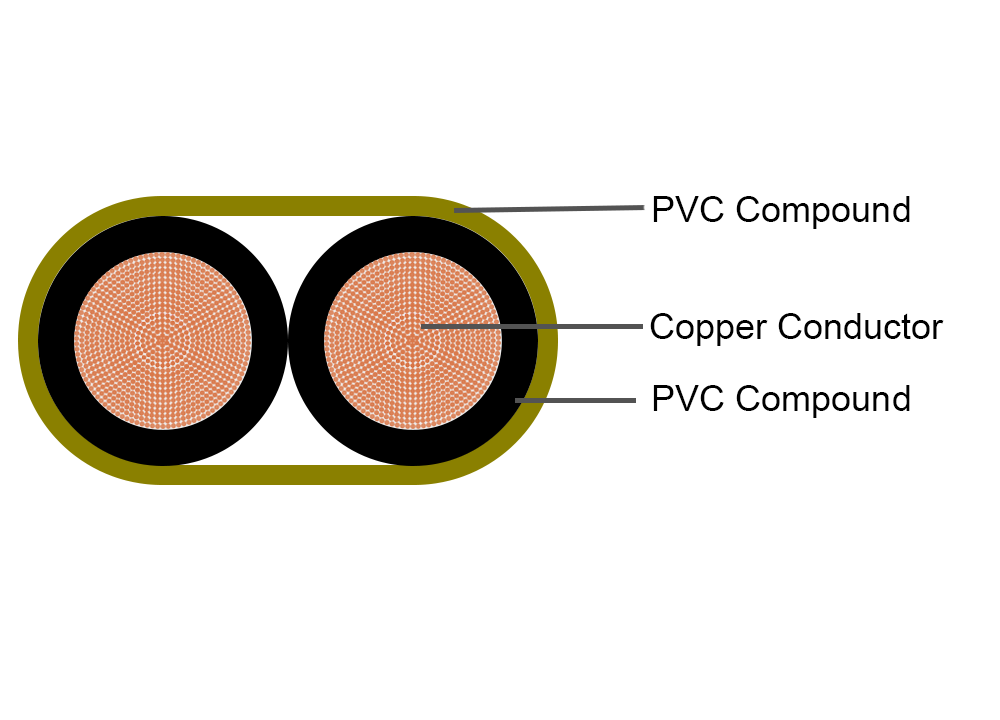

  • Conductor:

    Stranded Copper Conductor of Class 5/6 (Flexible)

  • Insulation:

    PVC Compound

  • Insulation Color:

    Red, Blue, Yellow/Green or as request

  • Sheath:

    PVC Compound

  • Sheath Color:

    White, Black

  • Test Voltage:

    2000 V

  • Standard:

    IEC 60502

Description

Description

Flat Flexible Wire

Conductor:

Stranded Copper Conductor of Class 5/6 (Flexible)

Insulation:

PVC Compound

Insulation Color

Red, Blue, Yellow/Green or as request

Sheath

PVC Compound

Sheath Color

White, Black

Temperature Range:

-30 - 70℃

Nominal Voltage:

300/500V, 450/750 V

Test Voltage:

2000 V

Minimal Bending Radius:

4D

Standard

IEC 60502



Technical Data

Cores/Norminal Section Rated Voltage No of Wires Insulation Thickness Sheath Thickness Size Max.Conductor Resistance at 20℃ Min. Insulation Resistance at 70℃
(mm2)  v  n/mm (mm) (mm) (mm) (MΩ.km) (MΩ.km)
          Upper Lowest Copper Tinned Copper
2×0.5 300/500V 16/0.2 0.6 0.9 3.5×5.5 4.2×6.5 38 38.3 0.013
2×0.75 300/500V 24/0.2 0.6 0.9 3.8×5.9 4.6×7.1 24.5 24.8 0.012
2×1.0 300/500V 32/0.2 0.6 0.9 3.9×6.1 4.8×7.4 18.1 18.2 0.011
2×1.5 300/500V 30/0.25 0.7 0.9 4.4×7.0 5.3×8.5 12.1 12.2 0.011
2×2.5 300/500V 49/0.25 0.8 1.0 5.1×8.4 6.2×10.1 7.41 7.56 0.01
2×4.0 300/500V 56/0.3 0.8 1.0 5.6×9.2 6.7×11.1 4.61 4.7 0.0085
2×6.0 300/500V 84/0.3 0.8 1.1 6.2×10.4 7.5×12.5 3.08 3.11 0.007
2×10 300/500V 80/0.4 1.0 1.2 7.9×13.4 9.5×16.2 1.83 1.84 0.0065
3×0.5 300/500V 16/0.2 0.6 0.9 3.5×7.2 4.2×9.2 38 38.3 0.013
3×0.75 300/500V 24/0.2 0.6 0.9 3.8×7.9 4.6×9.6 24.5 24.8 0.012
3×1.0 300/500V 32/0.2 0.6 0.9 3.9×8.4 4.8×10.1 18.1 18.2 0.011
3×1.5 300/500V 30/0.25 0.7 0.9 4.4×9.6 5.3×11.7 12.1 12.2 0.011
3×2.5 300/500V 49/0.25 0.8 1.0 5.1×11.6 6.2×14.0 7.41 7.56 0.01
3×4.0 300/500V 56/0.3 0.8 1.1 5.8×13.1 7.0×15.8 4.61 4.7 0.0085
3×6.0 300/500V 84/0.3 0.8 1.1 6.2×14.5 7.5×17.5 3.08 3.11 0.007

Advantage


  • Highly flexible, and durable against repeated bending .

  • Various length and number of conductors available by request.

  • Since the cable itself can also be used as the connector contact, it makes the connecting easy.

  • As the rectangular conductor is better in heat radiation than the round one, current capacity can be made greater per given sectional area.

  • It can be used in any bent form.

  • Saving the wiring space, it increases the packaging density.

Application

 Flexible Flat Cable is a connecting lead wire best suited for internal wirings of electronic apparatus.

Flexible Flat Cable is composed of conductors of rectangular section laid in parallel at a specified pitch and sandwiched between plastic film tapes.

The joining surfaces of the upper and lower tapes are bonded together by heat and pressure or adhesive applied to them.

It is used for connectors between circuit boards and for connectors of circuit boards to electronic parts in electronic apparatus such as printers,

copying machine, stereo players, TV sets, video tape recorders, telephone sets, etc. It is highly economical and reliable.
