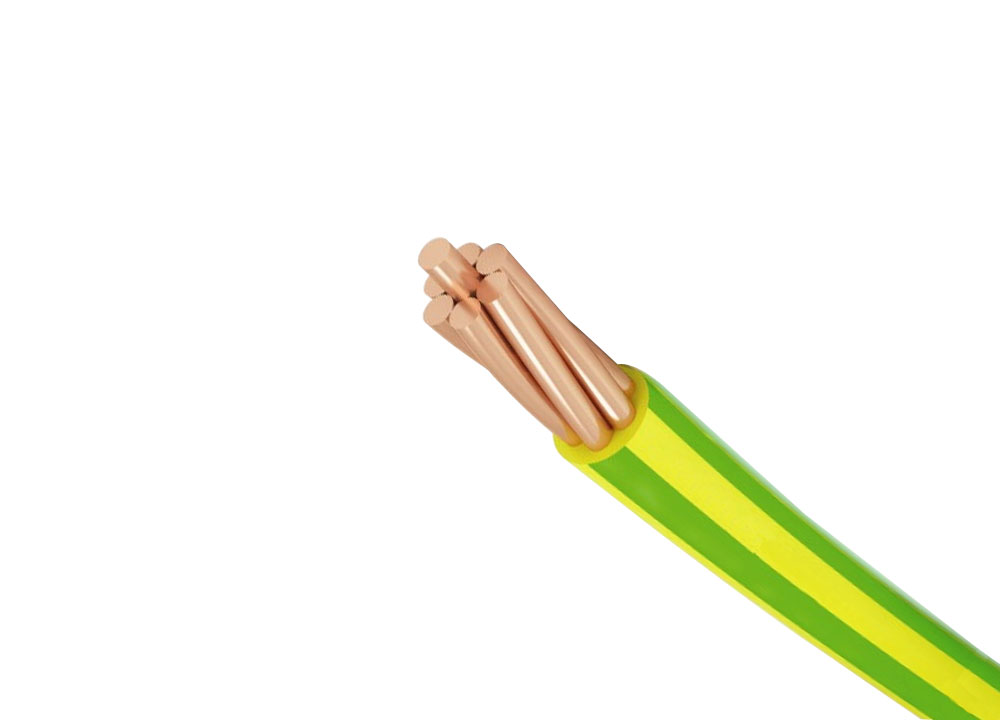

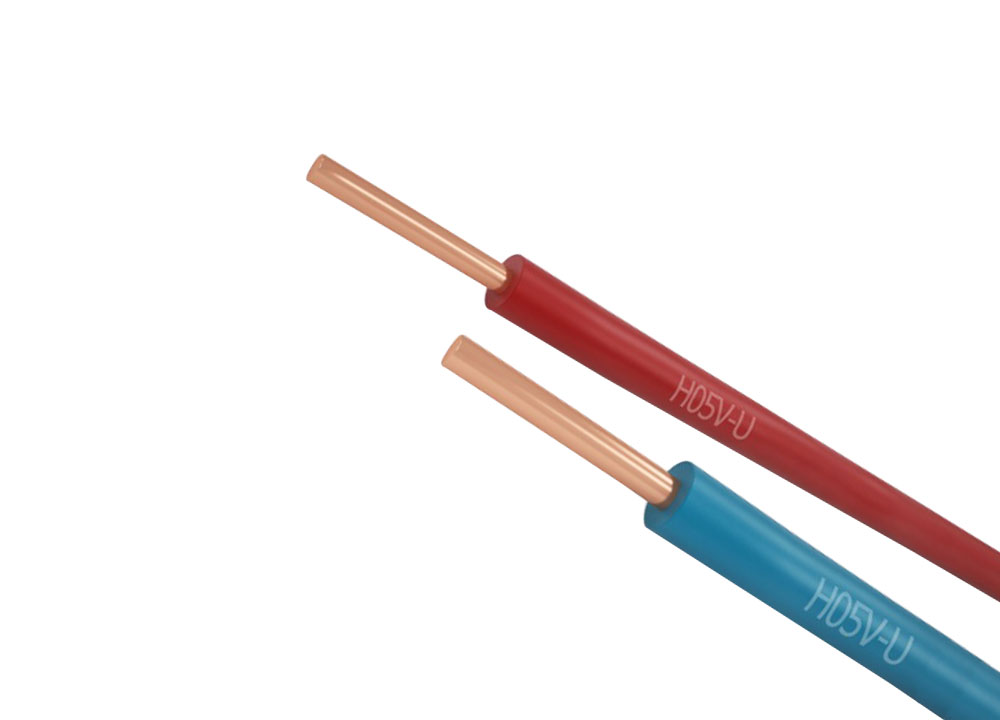

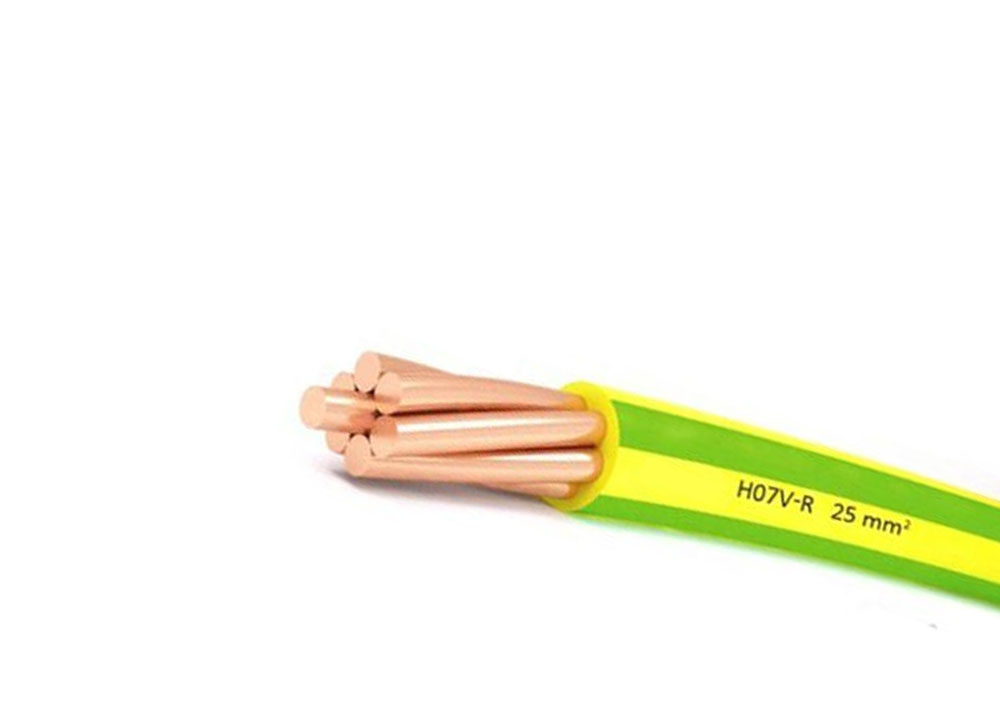

Single Core PVC Insulated Cable

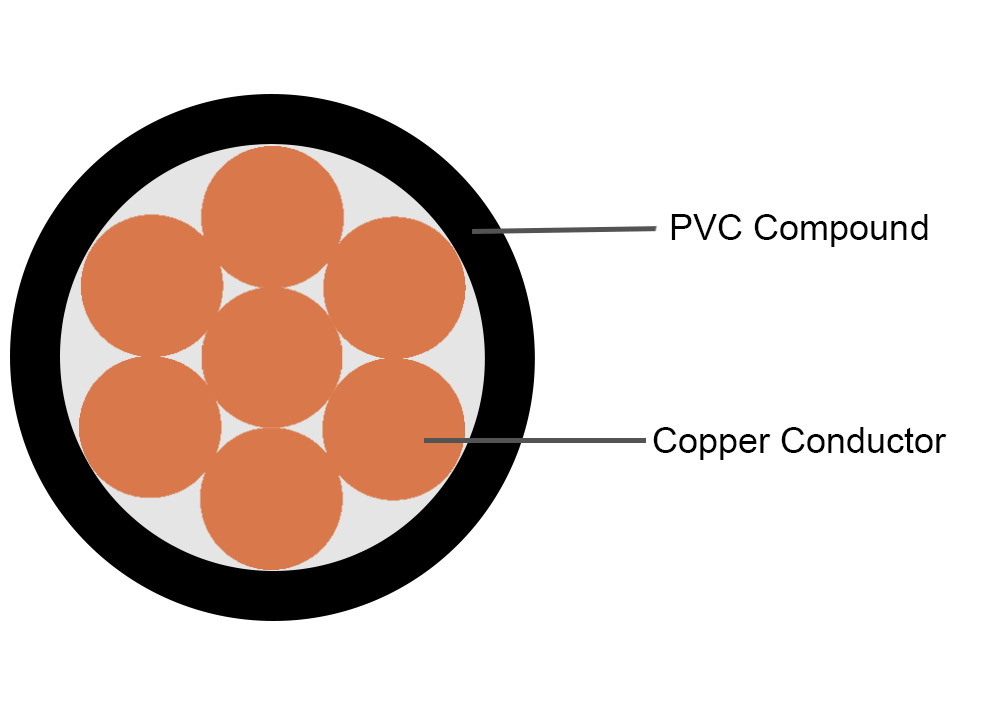

  • Conductor:

    Bare Copper Conductor of Class 1/2 (Solid)

  • Insulation:

    PVC Compound

  • Insulation Color:

    Red, Blue, Green, Yellow, Brown, Black, Grey, White, Pink, Orange, Yellow/Green

  • Temperature Range:

    -30 - 70℃

  • Nominal Voltage:

    300/500V, 450/750 V

  • Test Voltage:

    2500 V

  • Standard:

    IEC 60552

Description

Description Single Core PVC Insulated Wire
Conductor: Bare Copper Conductor of Class 1/2 (Solid)
Insulation: PVC Compound
Insulation Color Red, Blue, Green, Yellow, Brown, Black, Grey, White, Pink, Orange, Yellow/Green
Temperature Range: -30 - 70℃
Nominal Voltage: 300/500V, 450/750 V
Test Voltage: 2500 V
Minimal Bending Radius: 4D
Standard IEC 60552

Technical Data

Dimensions conductor cross-section Construction of individual conductor External diameter Insulation thickness Conductor resistance at 20 °C Specific. el. resistance of insulation at 70°C Cu weight Cable weight
  nominal min-max nominal max min   approx
mm² n x mm mm mm Ω/km MΩkm kg/km kg/km
0.5 1 x 0.80 1.9 – 2.3 0.6 36.0 0.014 4.8 9
0.75 1 x 0.95 2.1 – 2.5 0.6 24.5 0.013 7.2 10
1 1 x 1.13 2.2 – 2.7 0.6 18.1 0.011 9.6 14
1.5 1 x 1.38 2.6 - 3.2 0.7 12.10 0.011 14.4 20
2.5 1 x 1.78 3.2 - 3.9 0.8 7.41 0.010 24.0 31
4 1 x 2.26 3.6 - 4.4 0.8 4.61 0.0087 38.4 46
6 1 x 2.76 4.1 - 5.0 0.8 3.08 0.0070 57.6 65
10 7 x 1.35 5.6 - 06.7 1.0 1.83 0.0067 96 120
16 7 x 1.70 6.4 - 07.8 1.0 1.150 0.0056 153.6 175
25 7 x 2.13 8.1 - 09.7 1.2 0.727 0.0053 240 275
35 7 x 2.52 9.0 - 10.9 1.2 0.524 0.0046 336 370
50 19 x 1.83 10.6 - 12.8 1.4 0.387 0.0046 480 500
70 19 x 2.17 12.1 - 14.6 1.4 0.268 0.0040 672 710
95 19 x 2.52 14.1 - 17.1 1.6 0.193 0.0039 912 970
120 37 x 2.03 15.6 - 18.8 1.6 0.153 0.0035 1152 1200
150 37 x 2.27 17.3 - 20.9 1.8 0.124 0.0035 1440 1470

Application

The product is suitable for power installation, fixed wiring or flexible connection for electrical appliances with rated voltage of 450/750V and below.
