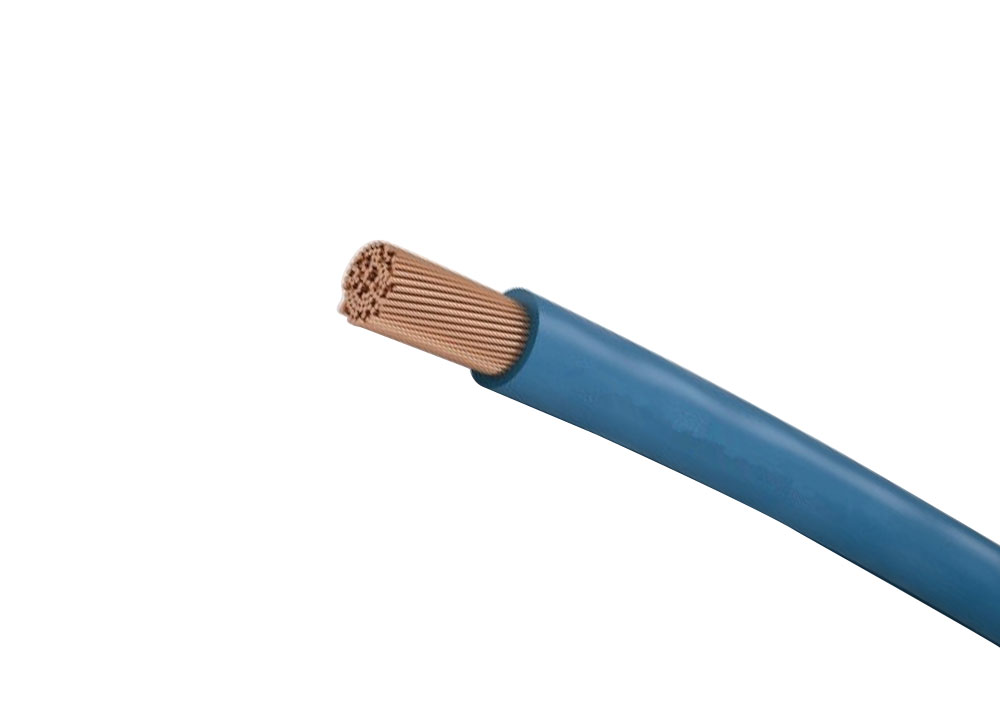

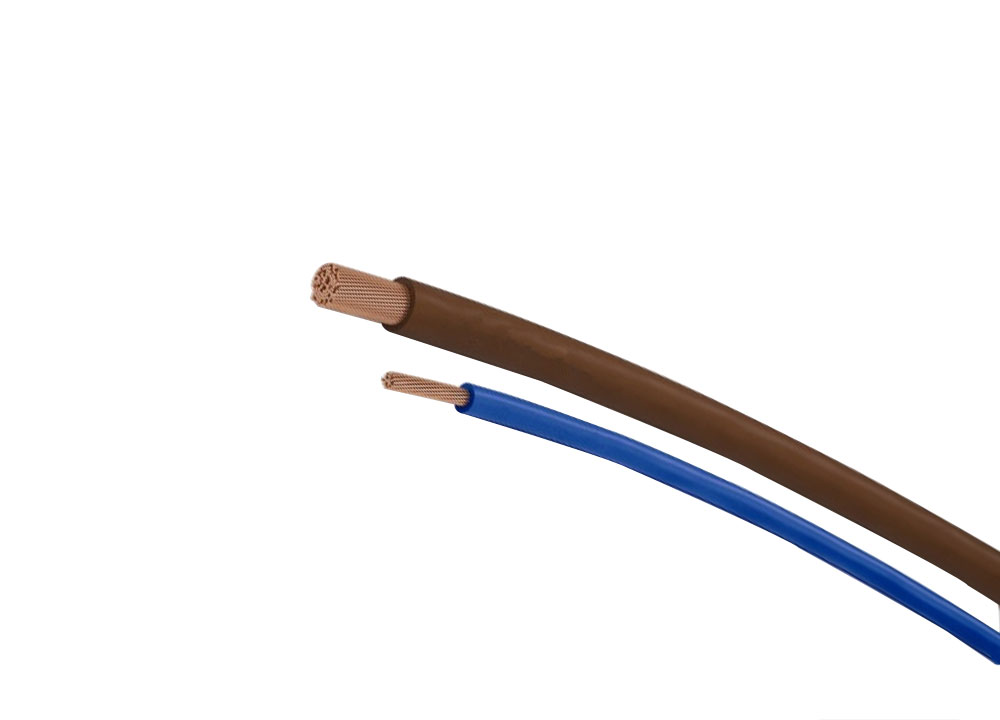

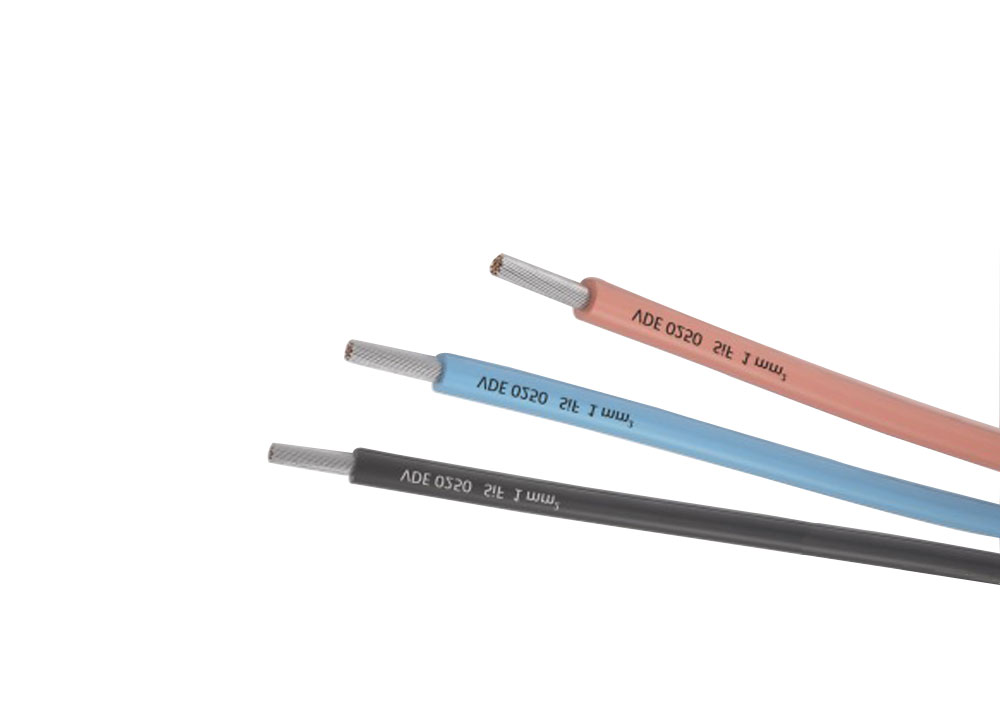

Single Core Flexible Cable

  • Conductor:

    Stranded Copper Conductor of Class 5 (Flexible)

  • Insulation:

    PVC Compound

  • Conductor Color:

    Red, Blue, Green, Yellow, Brown, Black, Grey, White, Pink, Orange, Yellow/Green

  • Temperature Range:

    -30 - 70℃

  • Nominal Voltage:

    300/500V, 450/750 V

  • Test Voltage:

    2500 V

  • Standard:

    IEC 60552

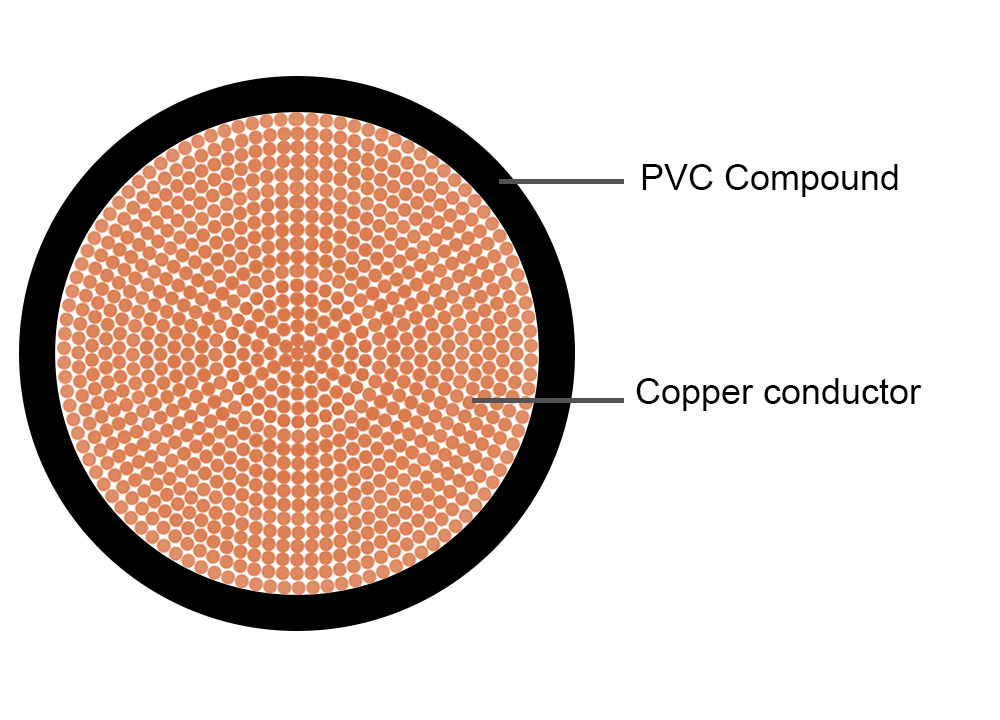

Description Single Core Flexible PVC Insulated Cable
Conductor: Stranded Copper Conductor of Class 5 (Flexible)
Insulation: PVC Compound
Conductor Color Red, Blue, Green, Yellow, Brown, Black, Grey, White, Pink, Orange, Yellow/Green
Temperature Range: -30 - 70℃
Nominal Voltage: 300/500V, 450/750 V
Test Voltage: 2500 V
Minimal Bending Radius: 4D for D < 8 mm   5D for 8 - 12 mm    6D for D > 12
Standard IEC 60552
Cross-section Conductor construction  External diameter Insulation thickness Conductor resistance at 20 °C Insulation resistance at 70°C Cu weight Cable weight
  nominal min-max. nominal max. min.   approx.
mm² n x mm mm mm Ω/km MΩ/km kg/km kg/km
0,5 16 x 0,20 2,1 - 2,5 0,6 39,0 0,013 4,8 10
0,75 24 x 0,20 2,2 - 2,7 0,6 26,0 0,011 7,2 12
1 32 x 0,20 2,4 - 2,8 0,6 19,5 0,010 9,6 14
1,5 30 x 0,25 2,8 - 03,4 0,7 13,3 0,0100 14,4 20
2,5 50 x 0,25 3,4 - 04,1 0,8 7,98 0,0095 24,0 32
4 56 x 0,30 3,9 - 04,8 0,8 4,95 0,0078 38,4 46
6 84 x 0,30 4,4 - 05,3 0,8 3,30 0,0068 57,6 65
10 80 x 0,40 5,7 - 06,8 1,0 1,91 0,0065 96,0 115
16 128 x 0,40 6,7 - 08,1 1,0 1,21 0,0053 153,6 170
25 200 x 0,40 8,4 - 10,2 1,2 0,780 0,0050 240 260
35 280 x 0,40 9,7 - 11,7 1,2 0,554 0,0043 336 360
50 400 x 0,40 11,5 - 13,9 1,4 0,386 0,0042 480 515
70 356 x 0,50 13,2 - 16,0 1,4 0,272 0,0036 672 710
95 485 x 0,50 15,1 - 18,2 1,6 0,206 0,0036 912 940
120 614 x 0,50 16,7 - 20,2 1,6 0,161 0,0032 1152 1180
150 765 x 0,50 18,6 - 22,5 1,8 0,129 0,0032 1440 1600
185 944 x 0,50 20,6 - 24,9 2,0 0,106 0,0032 1776 2100
240 1225 x 0,50 23,5 - 28,4 2,2 0,0801 0,0031 2304 3015
Annealed copper wires with PVC insulation are suitable for linking the household electrical appliance, small electric tools, instruments and power lighting devices and widely used as connectors of driving, lighting, electric equipment's, instrument and telecommunication equipment.
